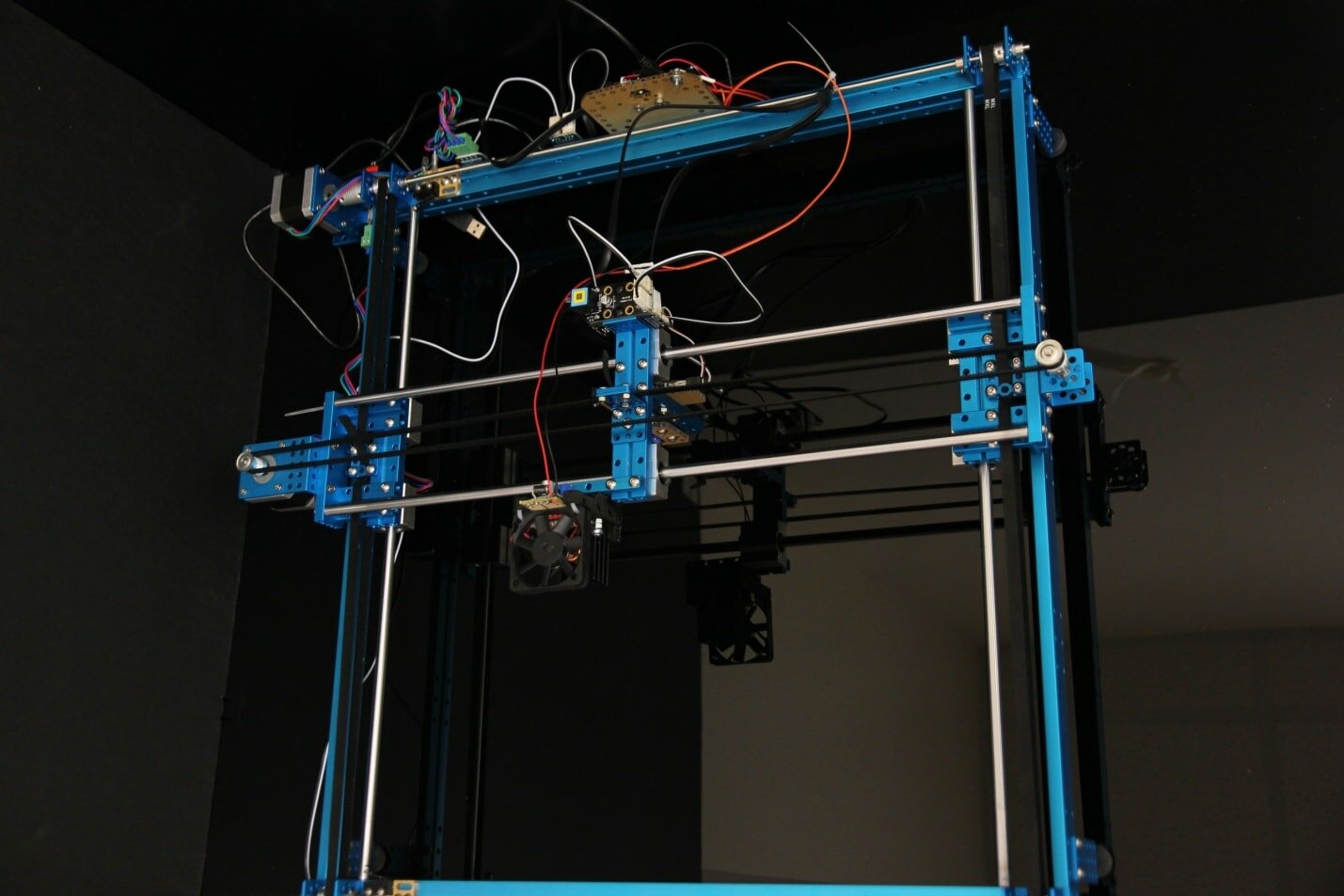

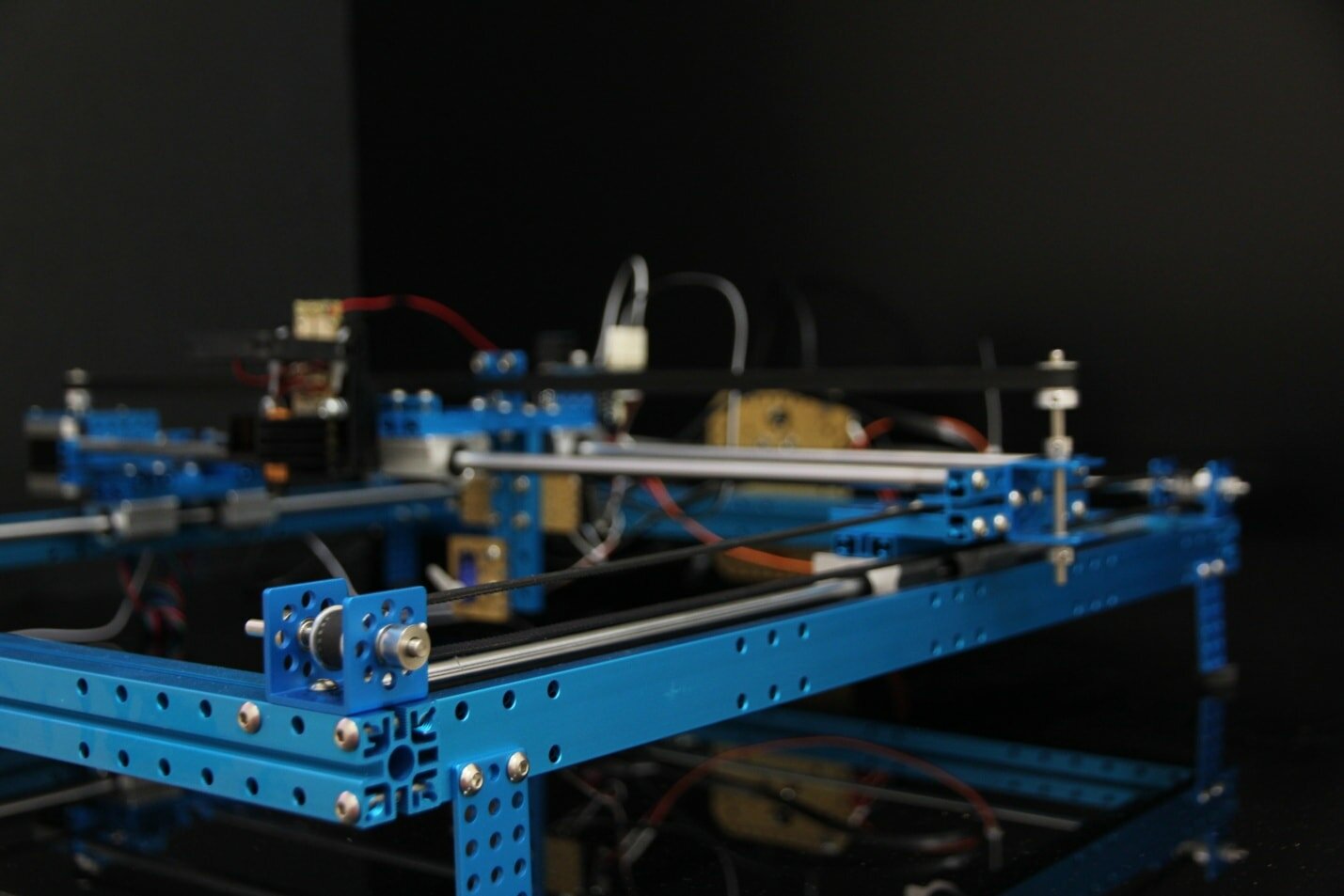

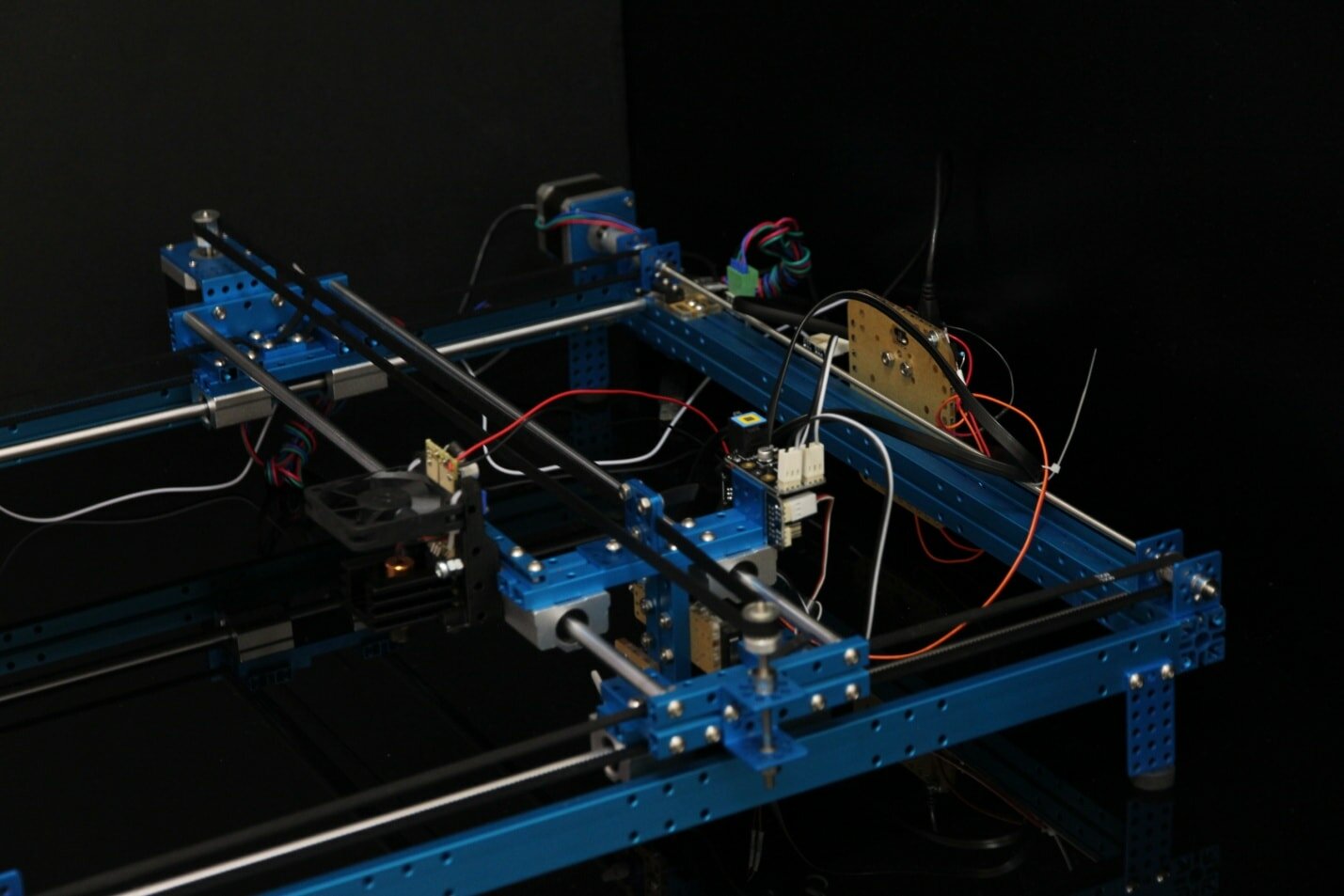

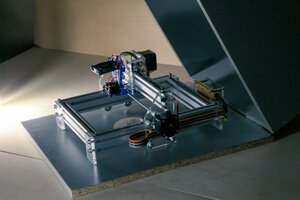

Endurance Makeblock XY laser engraving and cutting machine

General features:

  • Aluminum extrusion parts.
  • Two metal stepper motors with a back shaft.
  • A 12V solenoid included.
  • Closed type bushing block and ball bushing insert for use in linear motion applications.
  • Four-bolt aluminum alloy bushing block for a lightweight ready-to-mount installation.
  • Synthetic resin retainer plate for accurate ball guidance and low noise.
  • Four rows of recirculating balls inside the ball bushing for smooth running.
  • Integral lip seals to retain lubricant and protect against contamination.
  • Round steel shaft for use with slide units in linear motion applications.
  • Chrome plated for corrosion resistance.
  • Case hardened for wear resistance.
  • Precision ground for consistent ball bushing radial clearance.

Software

Controlled by mDraw or Benbox, Laser Engraver Upgrade Pack is able to engrave awesome patterns and words on phone cases, wallets, jeans, wooden boards, paper boards, Acrylic plates, etc, hence customizing your own special items.

Tech features

Parameters

Value

Power output 2.1W (2100 mW) 3.5W (3500 mW)
Maximum engraving speed 0.8 - 2 inch / sec
Maximum cutting speed (0.04 inch of a cardboard) 0.1 - 0.25 inch / sec
Maximum cutting depth (plywood) 0.1 - 0.3 inch
Maximum cutting depth (acrylic) 0.1 - 0.2 inch
The maximum height of the workpiece not more than 2 inch
Maximum cutting / engraving area 12 X 15 inch
The accuracy of engraving (grain) 0.004 inch
Compatible software Benbox
Lifetime More than 1000 hours
Operating conditions -20 C - +40 C
Cooling air
Power input 110 / 220 Volts
Average energy consumption ~30W
Dimensions (W x D x H) 25 X 25 X 6 inch
The weight ~ 9 pounds
Mount Does not require
Focal length 1 - 4 inch
Features Can work with gcode and raster and vector images.
Limitations Can not cut transparent, ceramic and metalic things
Average delivery pricing ~ 40-70 USD world wide shipping

Endurance L-Cheapo laser

The Laser Engraver Upgraded Pack uses a beam of light to cut and engrave various materials:
  • wood,
  • acrylic,
  • PLA,
  • ABS,
  • felt,
  • fabric,
  • paper,
  • cardboard,
  • hardboard.

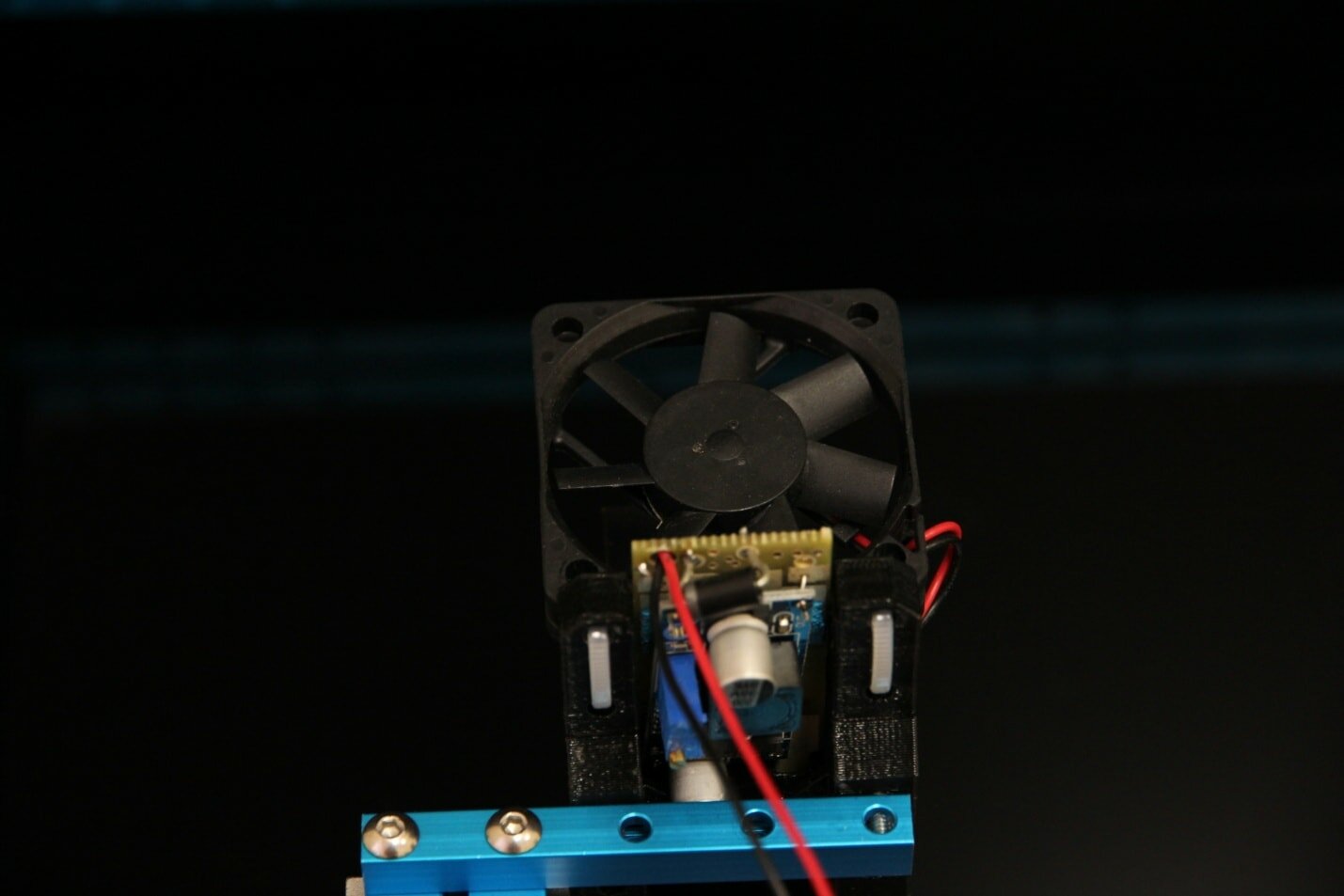

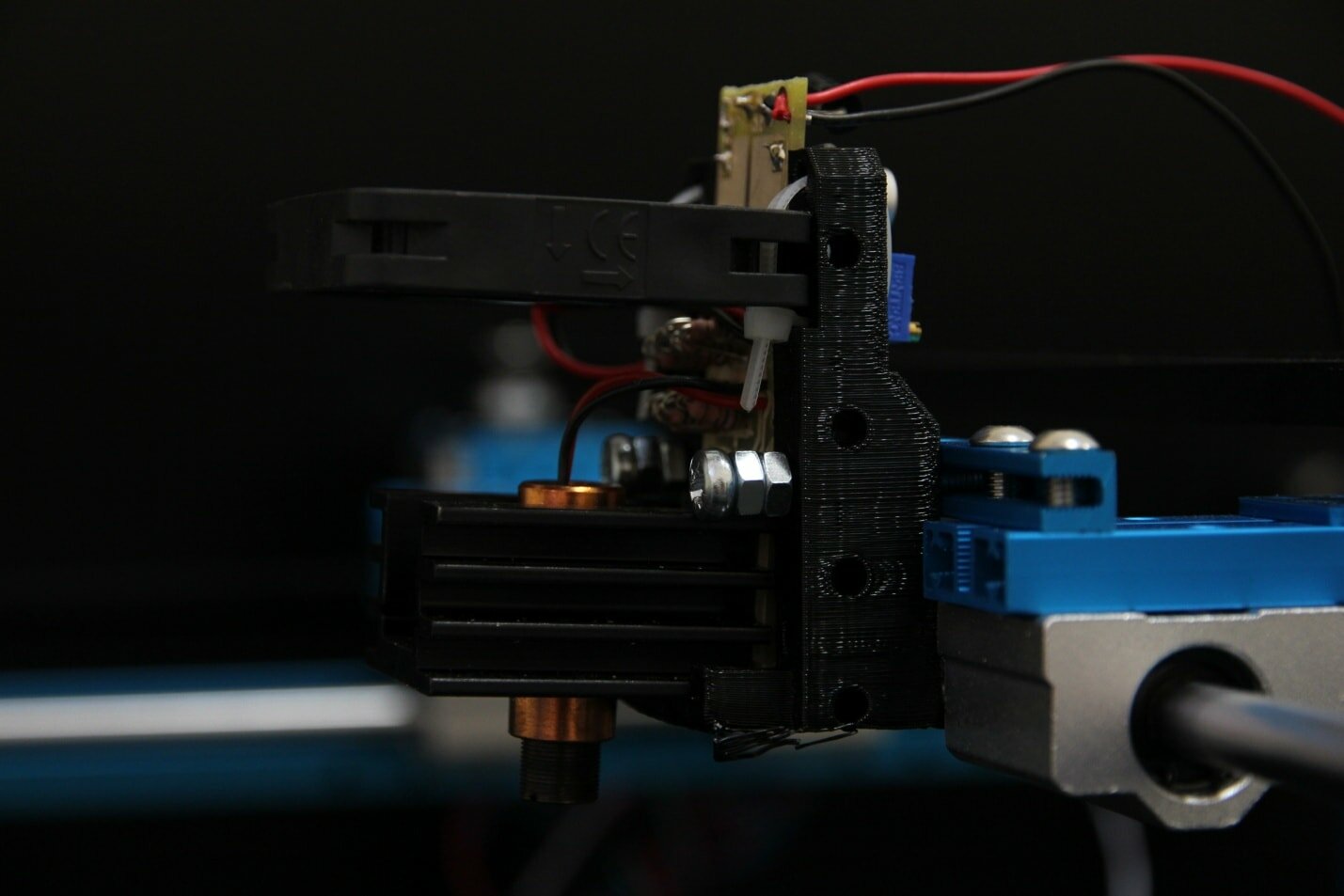

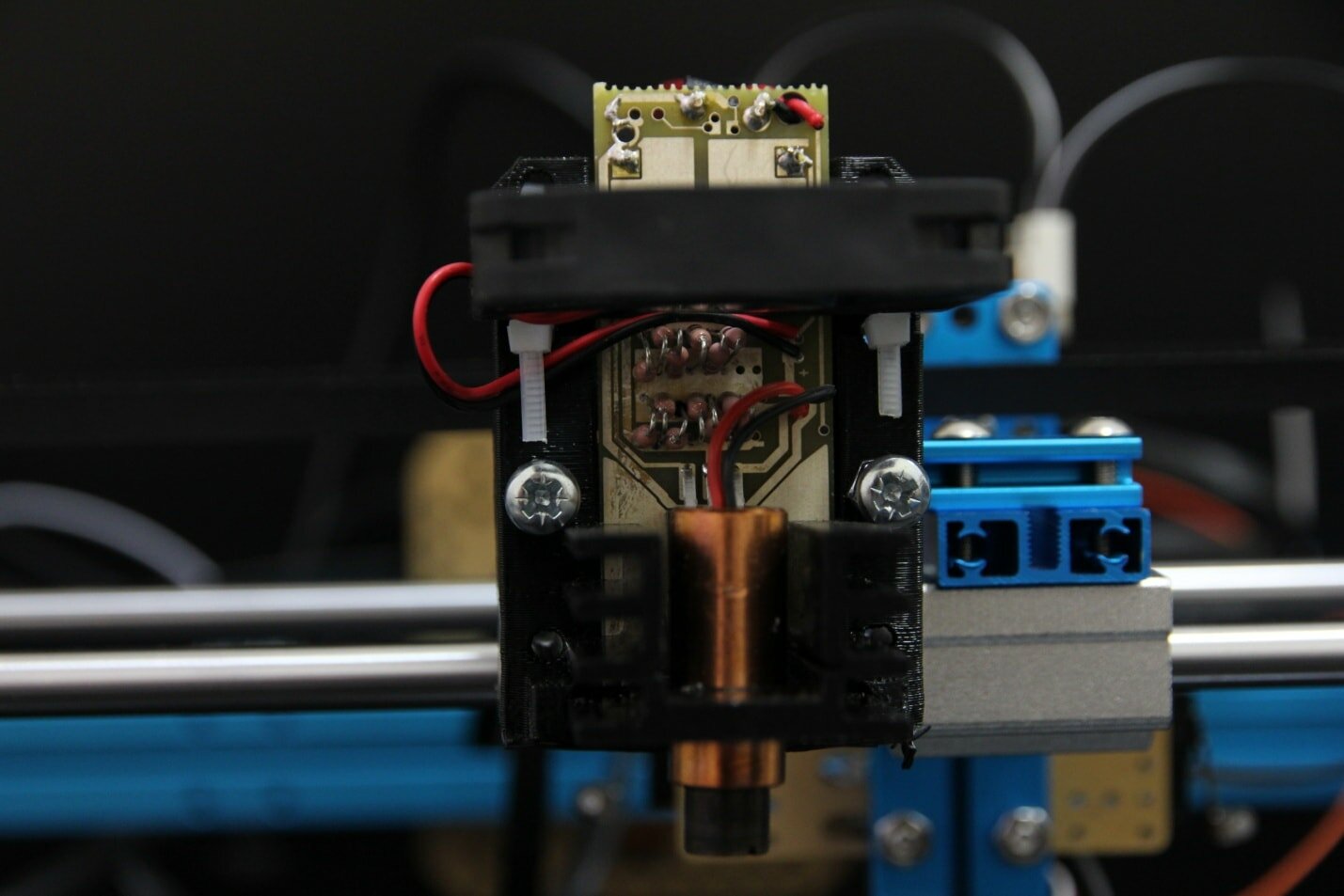

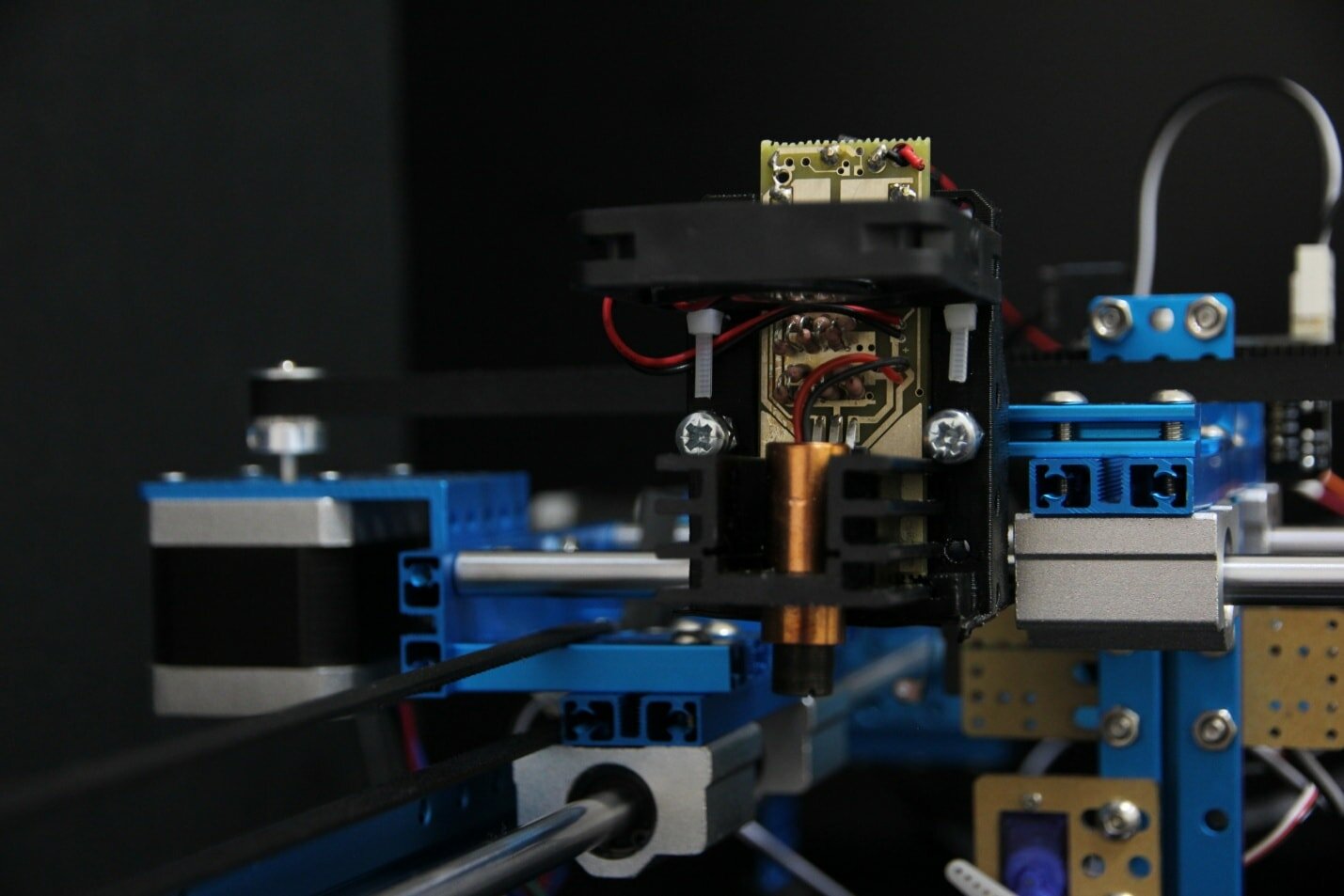

An Endurance L-Cheapo laser

  • a blue-violet diode laser with the wavelength of 445nm.
  • with a PWM controller
  • highly efficient
  • endurable
  • made in the USA (tested in Russia).

The MakeBlock engraver / cutter specifications

  • Endurance L-Cheapo laser (2100mW / 3500 mW)
  • Wavelength 445nm
  • Operating Temperature 0℃-50℃
  • Storage & Transport temperature -40℃-85℃
  • Engraving Accuracy 0.1mm
  • Engraver software mDraw & Benbox
  • Benbox supports file format JPG, PNG, BMP, GIF, DXF
  • mDraw supports file aornat SVG, BMP

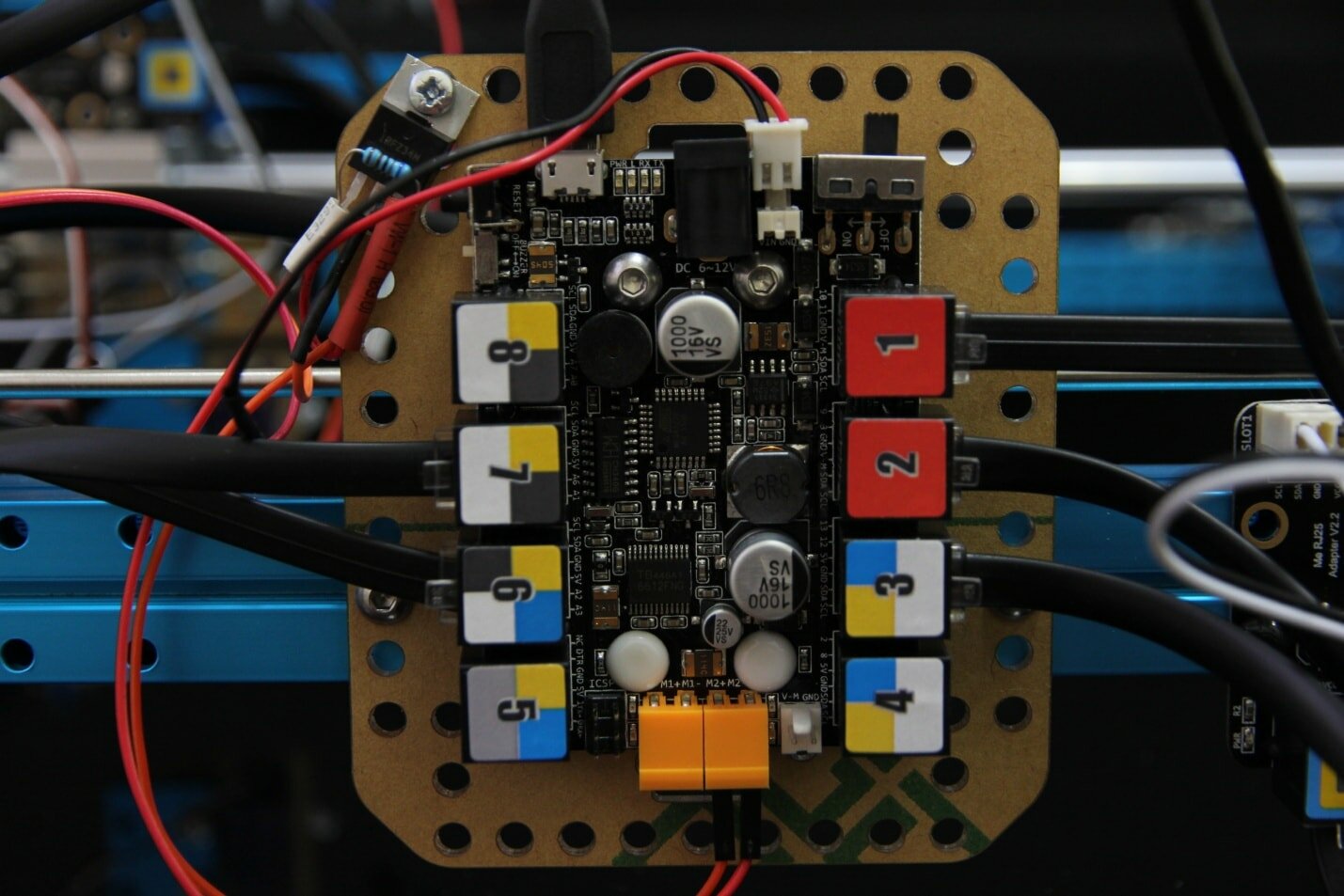

  • Makeblock Electronics: Me Orion (Based on Arduino Uno)
  • Frame: Anodized aluminum
  • Size (L×W×H): 620mm × 620mm×140mm
  • Working area (X×Y): 310mm×390mm
  • Max Working Speed: 50mm/s
  • G.W.: 4.3kg
  • Super easy to use the stepper motor driver, A4988
  • Updated main board -- Me Orion(Base on Arduino UNO)
  • Easily controlled by mDraw


Always in stock Worldwide Shipping

Imagine and Create

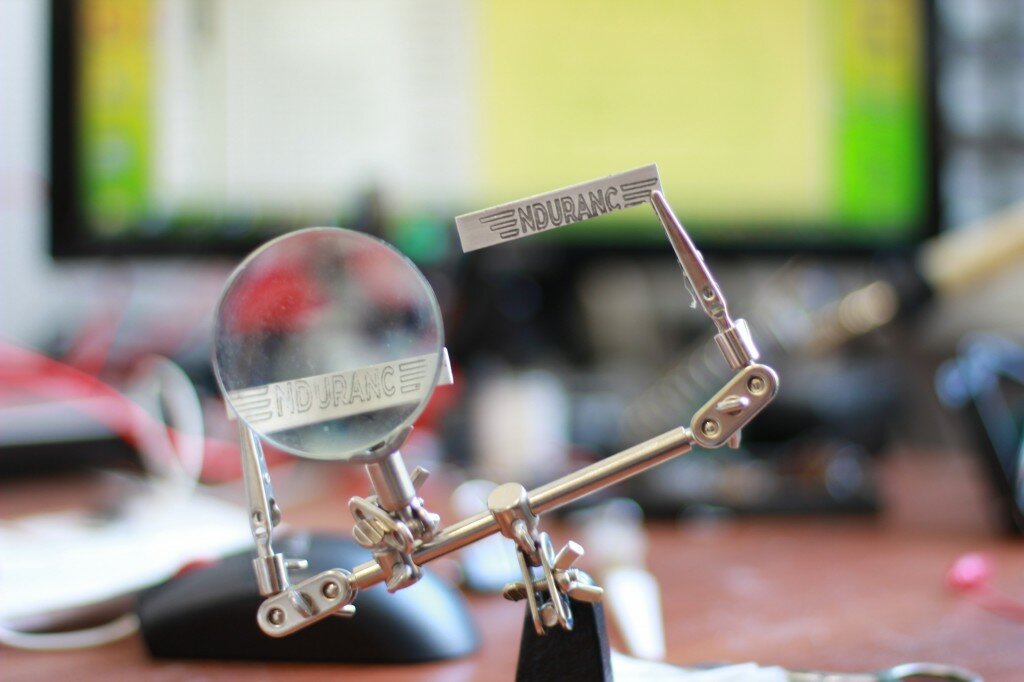

laser01
1
leather_engraving_new_1

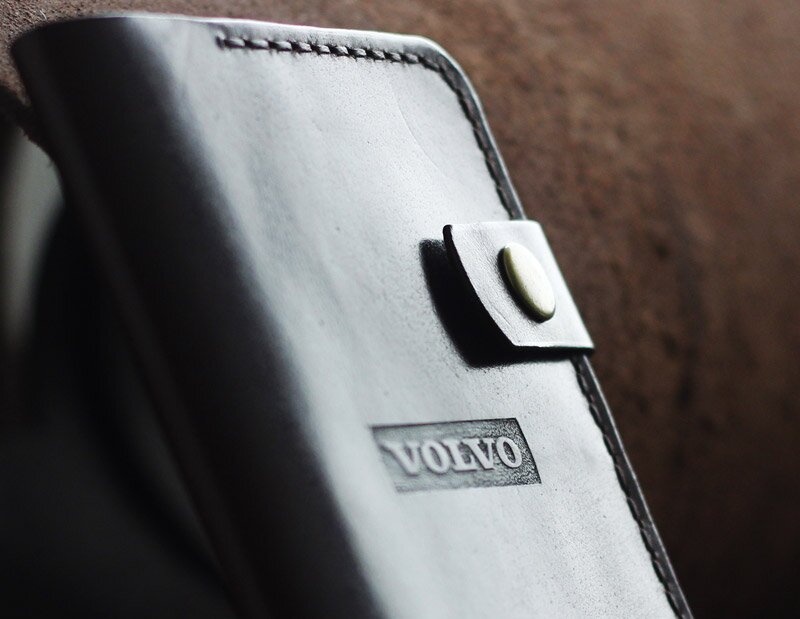

2

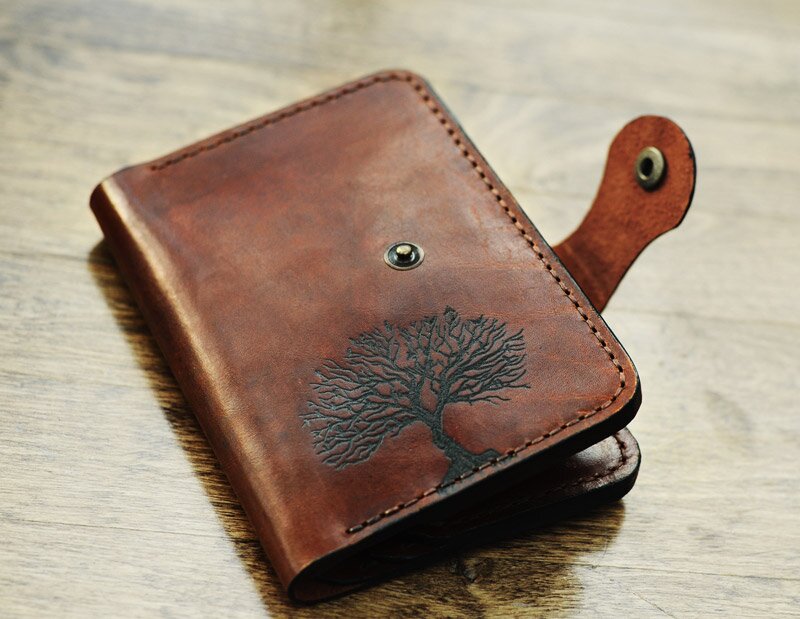

3
4

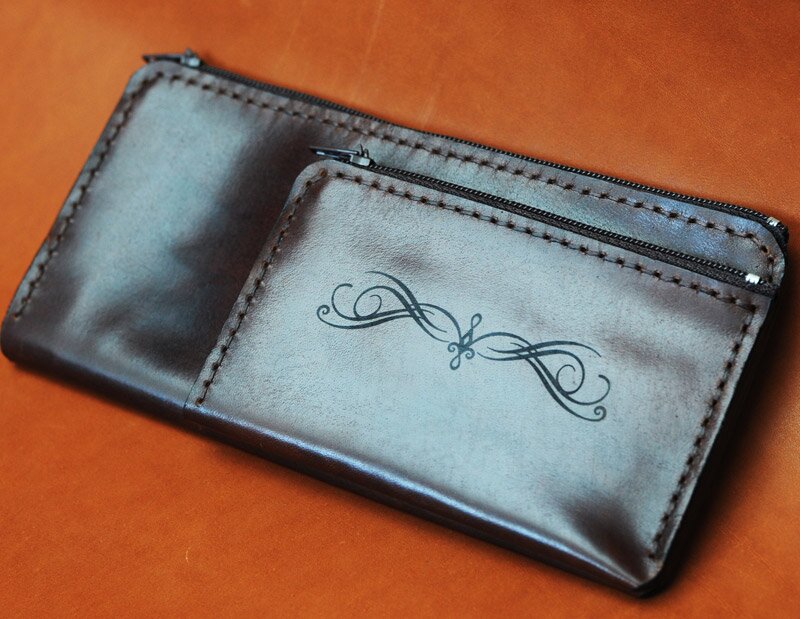

5
6
coffee_2
Paris_2
IMG_0258_1

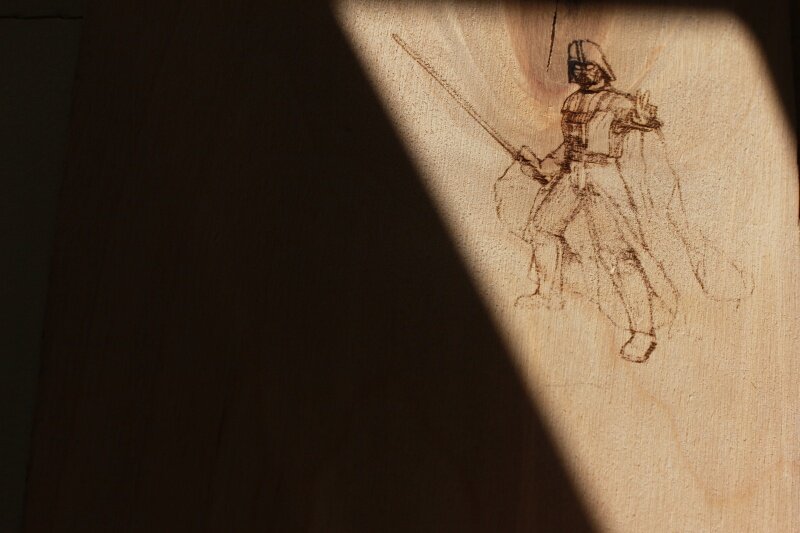

darth vader new 1
leather new 1

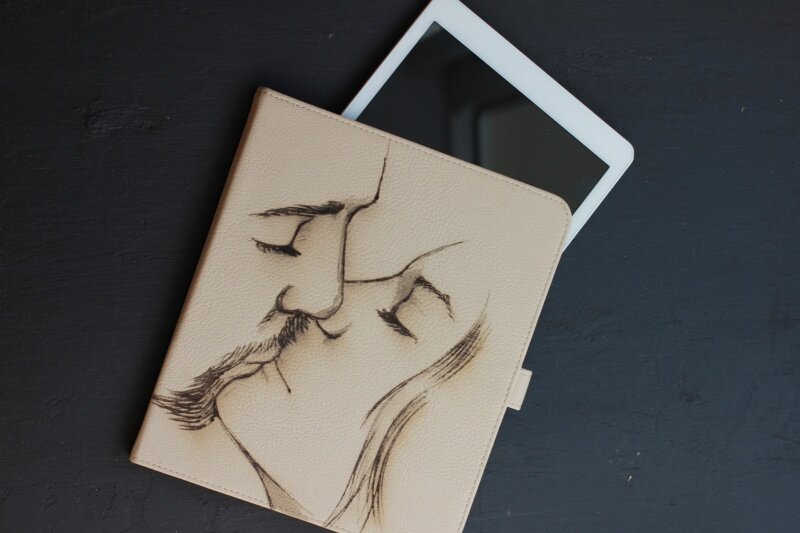

leather new 2
maker new 1
soft wood new 1
table new 1

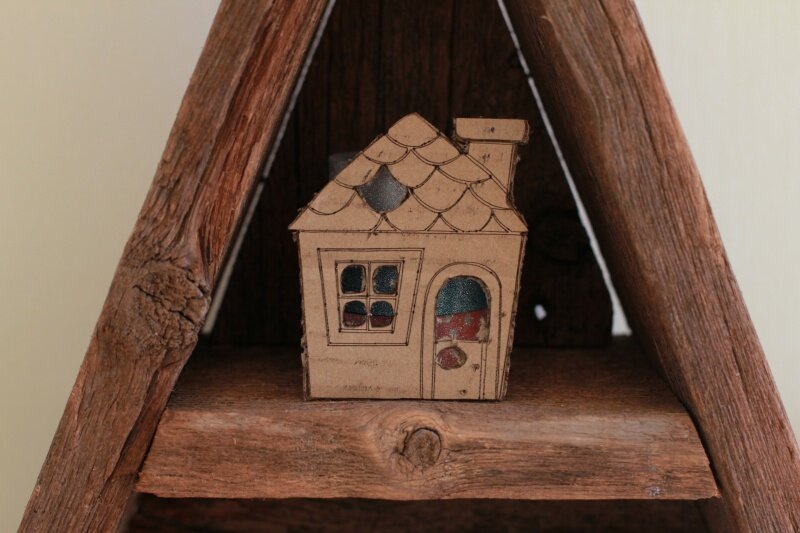

cardboard new 1

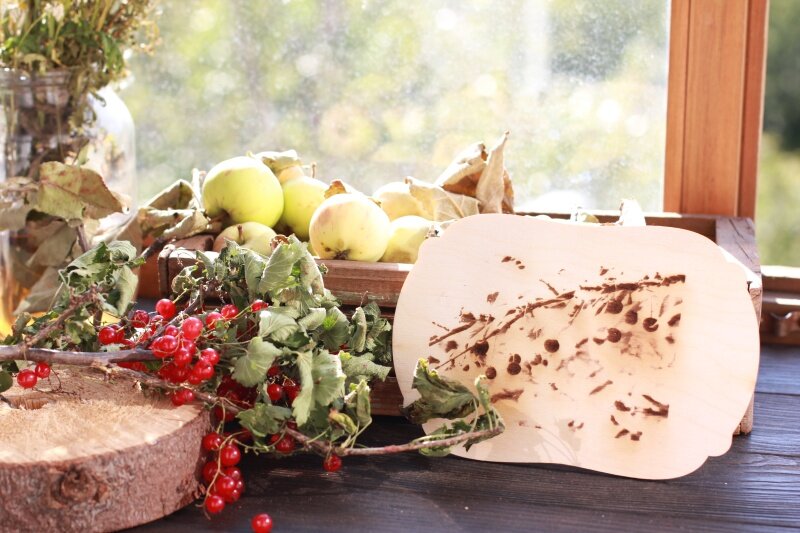

wood new 1
box-2
box 2-2

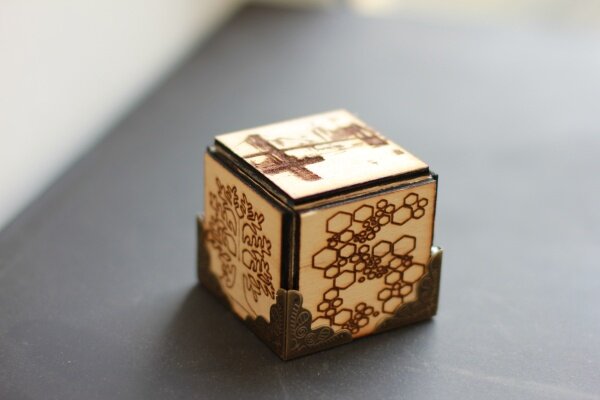

box 3-2
deer depp engraving-2

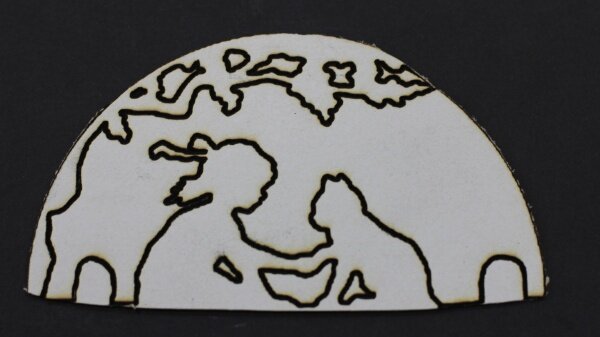

girl and a cat-2
map-2
2016
christmas collage
dream
Iloveyou
love santa
Santa
snowflake
winter collage
girl-Edit
glass 1
glass 2
IMG_5843
IMG_5888
IMG_5908
IMG_5928
IMG_5946
IMG_5948
IMG_5955
IMG_5959

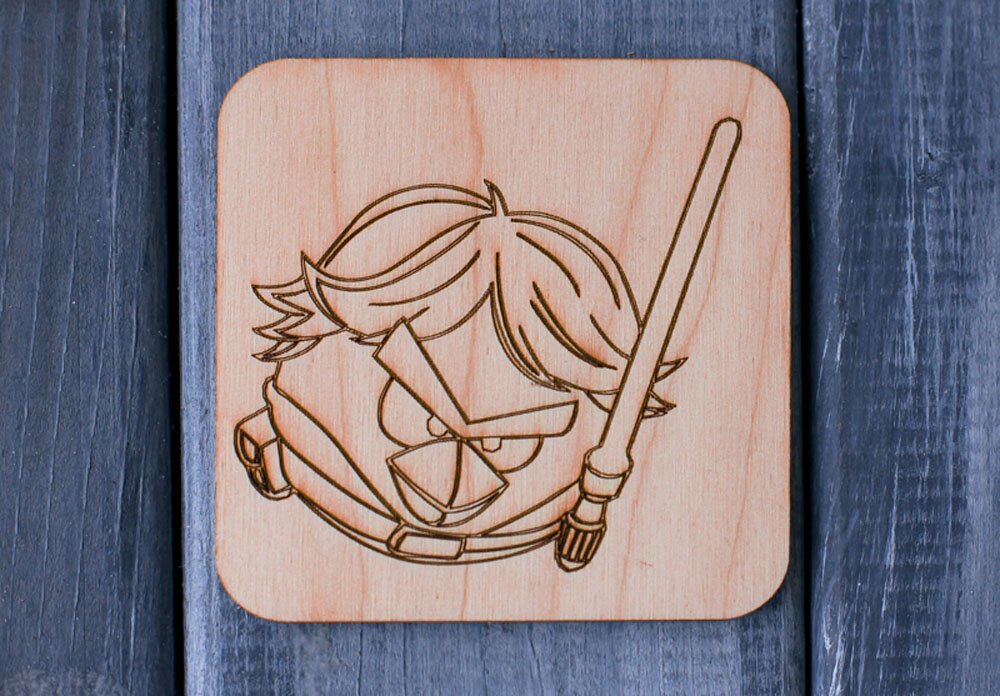

IMG_5963
IMG_5964
IMG_5966
love

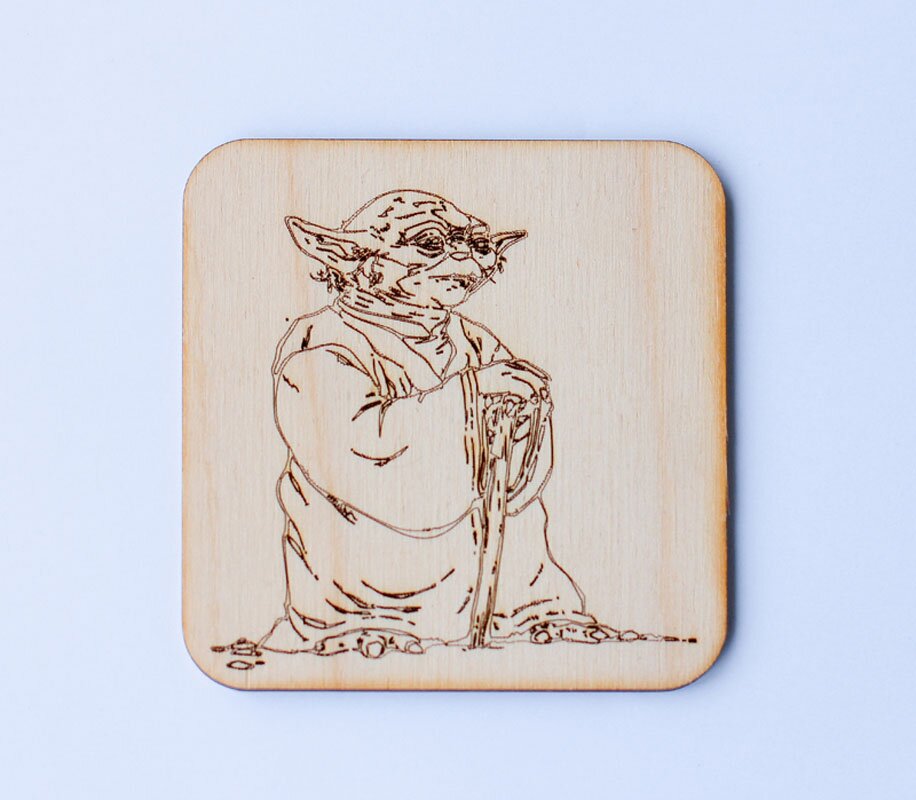

maser yoda
nut
star wars-Edit
wallet-Edit
winter
bird 1
love 1
love and home 2
tablet 3







autumn
bread and salt
salt
beethoven
IMG_9970_1

IMG_9974_1



WARNING:

As the laser energy has high density, make sure to take safety measures while using the laser.



Avoid direct eye-contact with the laser beam;



DO NOT point the laser beam at people or animals.



Keep it away from children and other people who are not familiar with the laser usage;



Minimum age: 18-year-old.



MAKE SURE to wear safety goggles to protect your eyes while using the laser.
