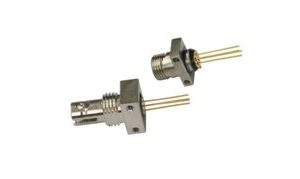

1310nm 2mw Receptacle Laser Diode LD

Description

Specifications 1310nm 2mw Receptacle Laser Diode LD 1310nm SM Receptacle LD with SMF WSLR-1310-002m-9-FP Min Type Max Center Wavelength@25Ўж 1290nm 1310nm 1330nm Laser Type FP Optical Fiber Output Power (After Fiber) —- 2mW —- Fiber Specification 9um SM Fiber Threshold Current (Typ.) Ith 5mA —- 15mA Operating Current —- 25mA —- Forward Voltage 1.1V 1.6V Monitor Current 0.1mA —- —- PD Capacitance —- 10pF 15pF PD Dark Current —- —- 0.1uA Side Mode Suppression Ration 30dB 35dB —- Package Style Receptacle Data Rate 1.25Gb/s 2.5Gb/s Isolation Optional Ferrule Type FC
