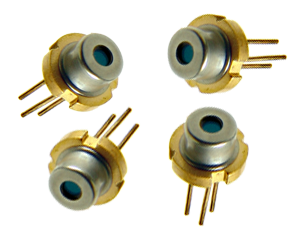

1310nm DFB Receptacle Laser Diode LD

Description

Specifications 1310nm DFB Receptacle Laser Diode LD 1310nm 10mw SM Receptacle LD Module WSLR-1310-010m-9-DFB Min Type Max Center Wavelength@25Ўж 1290nm 1310nm 1330nm Laser Type DFB Optical Fiber Output Power (After Fiber) —- 10mW —- Fiber Specification 9um SM Fiber Threshold Current (Typ.) Ith —- 12mA —- Operating Current —- 60mA —- Operating Voltage —- 1.4V —- Spectral Width(nm@20dB) —- 0.23 —- SMRS —- 35dB —- Rs(ohms) —- 12.98 —- Monitor Current 0.1mA —- —- PD Capacitance —- 10pF 15pF PD Dark Current —- —- 0.1uA Slope —- 0.38W/A —- Package Style Receptacle Ferrule Type FC
