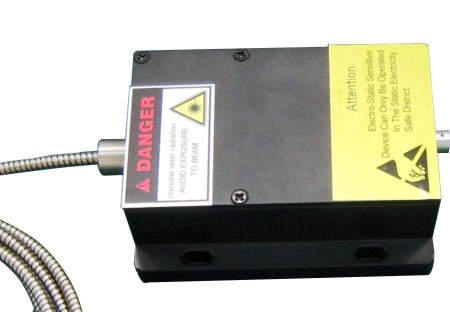

445nm(440nm~460nm) 15mW Fiber CoupledLaser System with PM Fiber
Description
Specifications 445nm(440nm~460nm) 15mW Fiber CoupledLaser System with PM Fiber WSLS-445-015m-PM Min Type Max Center Wavelength@25Ўж 440nm 445nm 460nm Output Power adjustment range 0~15mW Fiber Core 4um PM fiber Long Term Power Stability —- 1% 3% Temperature Stability —- 0.01C —- Noise (p-p) (10Hz to 20MHz) —- 2% —- RMS Noise (10Hz to 20MHz) —- 0.2% —- Fiber Connector FC/ST/SMA905 Fiber Length —- 80cm 100cm DC Power Supply 5V±,0.1V, Ripple<,25mVp-p, <, 2A TTL modulation Optional Operating Temperature 0~+50C Cooling TEC Cooling
