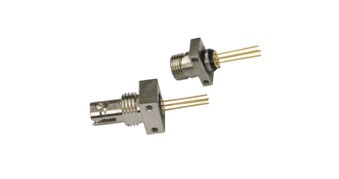

670nm 5mw MM Receptacle Laser Diode (LD) Module

Description

Specifications 670nm 5mw MM Receptacle Laser Diode (LD) Module WSLR-670-005m-M-PD Min Type Max Center Wavelength@25Ўж 660nm 670nm 680nm Spectral Width (FWHM) —- 2.0nm 3.0nm Optical Fiber Output Power (After FiberЈ© —- 5mW —- Fiber Specification 62.5um Ј¬105umЈЁ or moreЈ© 0.22 (or more) Slope Efficiency 0.4mW/mA 0.5mW/mA —- Monitor Current 0.1mA 0.2mA 0.5mA PD Reverse Voltage —- 30V —- Ferrule Type FC Other Customized Ferrule Type ST, SC Threshold Current (Typ.) —- 20mA 40mA Operating Current (Typ.) —- 40mA 80mA Operating Voltage —- 2.3V 2.6V Package Style Receptacle Recommended Operating Temperature 25Ўж
