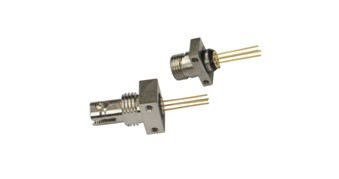

685nm 25mw Receptacle Laser Diode (LD)

Description

Specifications 685nm 25mw Receptacle Laser Diode (LD) 685nm MM Receptacle Laser Diode Module WSLR-685-025m-M-PD Min Type Max Center Wavelength@25Ўж 670nm 685nm 700nm Spectral Width (FWHM) —- —- —- Optical Fiber Output Power (After FiberЈ© —- 25mW —- Fiber Specification 62.5um Ј¬105umЈЁ or moreЈ© 0.22 (or more) Slope Efficiency 0.4mW/mA 0.5mW/mA —- Monitor Current 0.05mA 0.3mA 2.5mA PD Reverse Voltage —- 30V —- Ferrule Type FC Other Customized Ferrule Type SC , ST Threshold Current (Typ.) —- 35mA 60mA Operating Current (Typ.) —- 100mA 140mA Operating Voltage 2.0V 2.7V 3.0V Package Style Receptacle Recommended Operating Temperature 25Ўж
