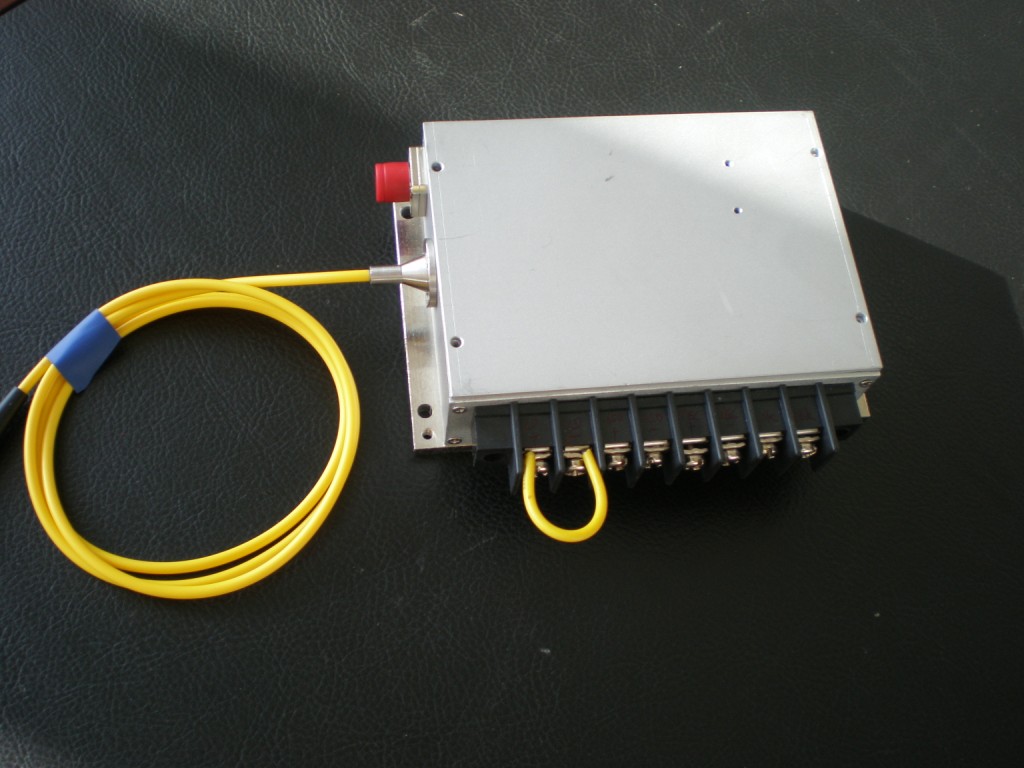

780nm~785nm 10w Fiber Coupled Laser Diode Module (LD)

Description

Specifications 780nm~785nm 10w Fiber Coupled Laser Diode Module (LD) WSLB-785-010-H Min. Type Max. Center Wavelength@25Ўж —- 780&plusmn,10nm —- Spectral Width (FWHM) —- 3nm —- Output Power —- 10W —- Temperature Coefficient of Wavelength —- 0.3nm / C —- Threshold Current (Typ.) —- 300mA —- Operating Current (Typ.) —- 2.5A —- Operating Voltage —- 16V —- Cooling TEC Cooling Fiber Core Diameter &lt,400um Fiber Numerical Aperture 0.22 Fiber Length 100cm Connector Type SMA905/ST/FC Aiming Beam (2mw@650nm) Optional Wavespectrum offer Customized 785nm Fiber Coupled LD. l Customized Output Power l Customized Fiber Core l Dual-Wavelength or Tri-Wavelength Module Optional(such as 3w@785nm+350mw@635nm) Contact us with info@wavespectrum-laser.com
