780nm~785nm Fiber Coupled
Description

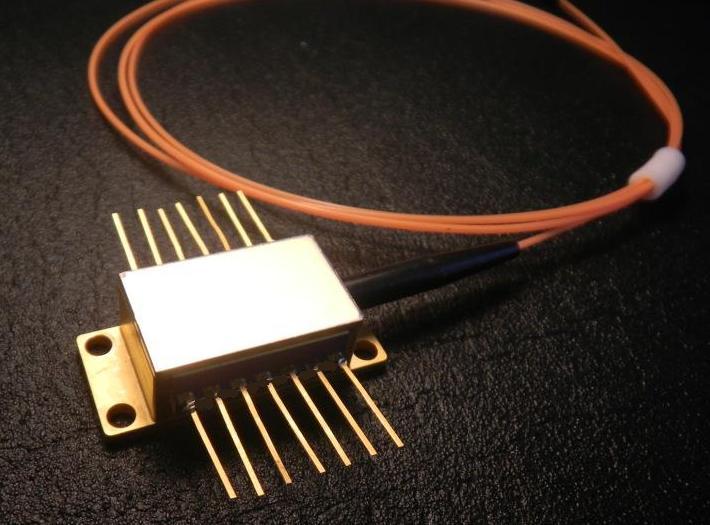

Specifications 780nm~785nm Fiber Coupled Laser Diode (LD) with 14-pin Butterfly (BF) Package WSLX-785-001-H-T Center Wavelength@25Ўж 780±,10nm Spectral Width (FWHM) 3nm Output Power 1.5W Temperature Coefficient of Wavelength 0.3nm / C Threshold Current (Typ.) 300mA Operating Current (Typ.) 2.5A Operating Voltage 2.3V Recommended Case Temperature 25C TEC Max Current 1.8A TEC Max Voltage 2.5V Fiber Core 200um 105um Fiber Length 80cm Connector Type SMA905/ST/FC Package Style 14-PIN Butterfly Package
