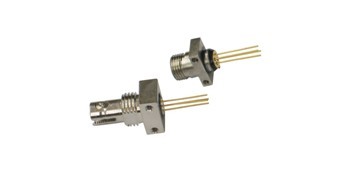

808nm 100mw Receptacle Laser Diode (LD) Module

Description

Specifications 808nm 100mw Receptacle Laser Diode (LD) Module 808nm~810nm 120mw MM Receptacle LD Module WSLR-808-120m-M-PD Min Type Max Center Wavelength@25Ўж 805nm 808nm 811nm Spectral Width (FWHM) —- 2.0nm 3.0nm Optical Fiber Output Power (After FiberЈ© —- 100mW 120mW Fiber Specification 62.5um Ј¬105umЈЁ or moreЈ© 0.22 (or more) Slope Efficiency 0.95mW/mA 1.0mW/mA 1.10mW/mA Monitor Current —- 0.3mA —- PD Reverse Voltage —- 30V —- Ferrule Type FC Other Customized Ferrule Type SC , ST Threshold Current (Typ.) —- 50mA 60mA Operating Current (Typ.) —- 260mA 300mA Operating Voltage —- 1.8V 2.3V Package Style Receptacle Recommended Operating Temperature 25Ўж
