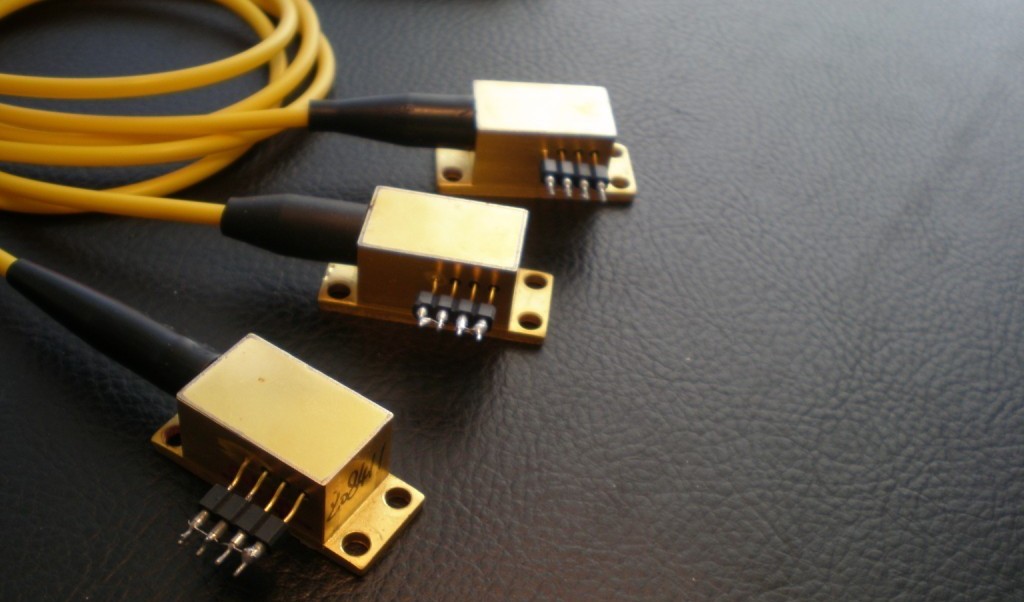

808nm 5w~6w Fiber Coupled Laser Diode (LD) with HHL Package

Description

Specifications 808nm 5w~6w Fiber Coupled Laser Diode (LD) with HHL Package WSLX-808-006-H Min Type Max Center Wavelength@25Ўж &plusmn,3nm 808nm &plusmn,10nm Spectral Width (FWHM) 3nm Output Power 5W 6W —- Temperature/Wavelength 0.3nm / C Threshold Current (Typ.) 650mA Operating Current (Typ.) 6.8A Operating Voltage 2.0V Recommended Temperature 25C TEC Max. Current —- TEC Max. Voltage —- Fiber Core Diameter 200um , 400um N.A. 0.22N.A. (0.37N.A. Optional) Package 2-PIN , 4-PIN Fiber Length 80cm Connector Type SMA905/ST/FC
