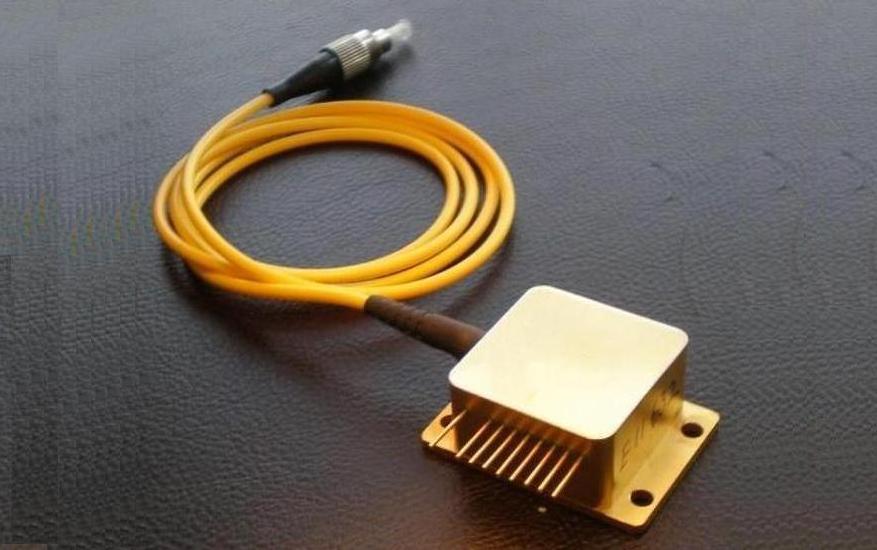

808nm HHL Package Fiber Coupled LD (laser Diode)

Description

Specifications 808nm HHL Package Fiber Coupled LD (laser Diode) with 4W Power WSLX-808-004-H-T Min Type Max Center Wavelength@25Ўж &plusmn,3nm 808nm &plusmn,10nm Spectral Width (FWHM) —- —- 3nm Output Power —- 4W —- Temperature Coefficient of Wavelength 0.3nm / C Threshold Current (Typ.) 750mA Operating Current (Typ.) 6.5A Operating Voltage 2.0V Recommended Case Temperature 25C TEC Max. Current 4A TEC Max. Voltage 9.8V Fiber Core Diameter 200um (105um, 400um Optional) N.A. 0.22N.A. (0.37N.A. Optional) Package 9-PIN HHL Fiber Length 80cm Connector Type SMA905/ST/FC
