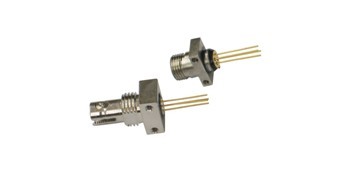

808nm~810nm 180mw~200mw Receptacle LD Module

Description

Specifications 808nm~810nm 180mw~200mw Receptacle LD Module 808nm MM Receptacle Laser Diode (LD ) Module WSLR-808-180m-M-PD Min Type Max Center Wavelength@25Ўж 805nm 808nm 811nm Spectral Width (FWHM) —- 2.0nm 3.0nm Optical Fiber Output Power (After FiberЈ© —- 180mW —- Fiber Specification 62.5um Ј¬105umЈЁ or moreЈ© 0.22 (or more) Slope Efficiency 0.7mW/mA 1.0mW/mA 1.10mW/mA Monitor Current —- 0.3mA —- PD Reverse Voltage —- 30V —- Ferrule Type FC Other Customized Ferrule Type ST, SC Threshold Current (Typ.) —- 65mA 100mA Operating Current (Typ.) —- 350mA 400mA Operating Voltage —- 1.8V 2.3V Package Style Receptacle Recommended Operating Temperature 25Ўж
