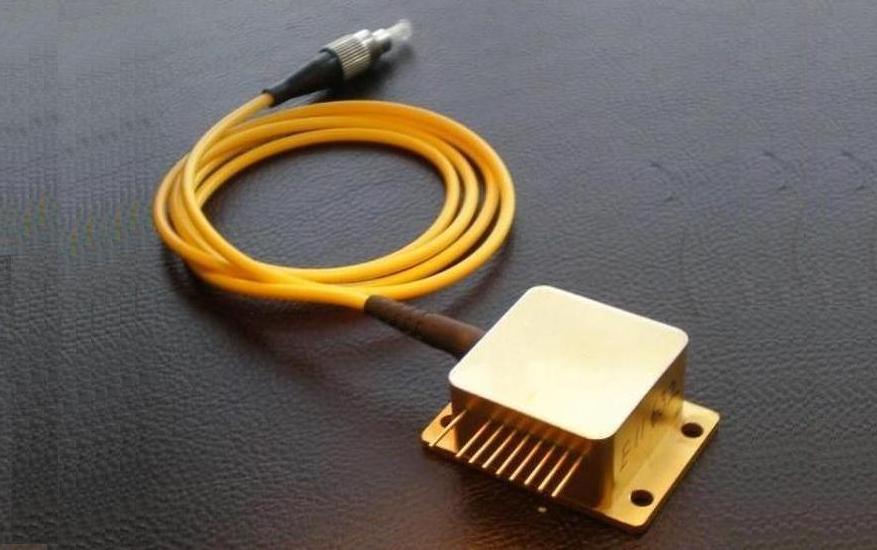

  • 808nm~810nm 5W~6W Fiber Coupled Laser Diode (LD) with HHL Pacakge

808nm~810nm 5W~6W Fiber Coupled Laser Diode (LD) with HHL Pacakge

SKU: 808nm~810nm 5W~6W Fiber Coupled Laser Diode (LD) with HHL Pacakge Category:

Description

Specifications 808nm~810nm 5W~6W Fiber Coupled Laser Diode (LD) with HHL Pacakge WSLX-808-006-H-T Min Type Max Center Wavelength@25Ўж &plusmn,3nm 808nm &plusmn,10nm Spectral Width (FWHM) 3nm Output Power 5W 6W —- Temperature/ Wavelength 0.3nm / C Threshold Current (Typ.) 650mA Operating Current (Typ.) 6.8A Operating Voltage 2.0V Recommended Temperature 25C TEC Max. Current 4A TEC Max. Voltage 9.8V Fiber Core Diameter 200um , 400um Package 9-PIN HHL Fiber Length 80cm Connector Type SMA905/ST/FC
