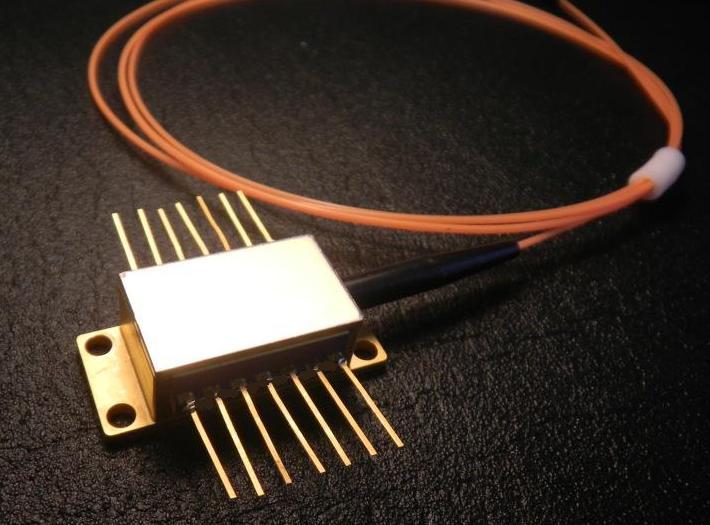

808nm~810nm Fiber Coupled Laser Diode (LD) with 14-pin Butterfly (BTF) Package
Description
Specifications 808nm~810nm Fiber Coupled Laser Diode (LD) with 14-pin Butterfly (BTF) Package WSLX-808-001-H-T Min Type Max Center Wavelength@25Ўж ±,3nm 808 ±,10nm Spectral Width (FWHM) —- 1nm 3nm Output Power —– 1.5W —- Temperature Coefficient of Wavelength 0.3nm / C Threshold Current (Typ.) 500mA Operating Current (Typ.) 2.2A Operating Voltage 2.0V Recommended Case Temperature 25C TEC Max Current 1.8A TEC Max Voltage 2.5V Fiber Core 105um (60um ,200um , 400um Optional) N.A. 0.22 (0.12N.A. 0.37N.A. Optional) Fiber Length 80cm Connector Type SMA905/ST/FC Package Style 14-PIN Butterfly Package
