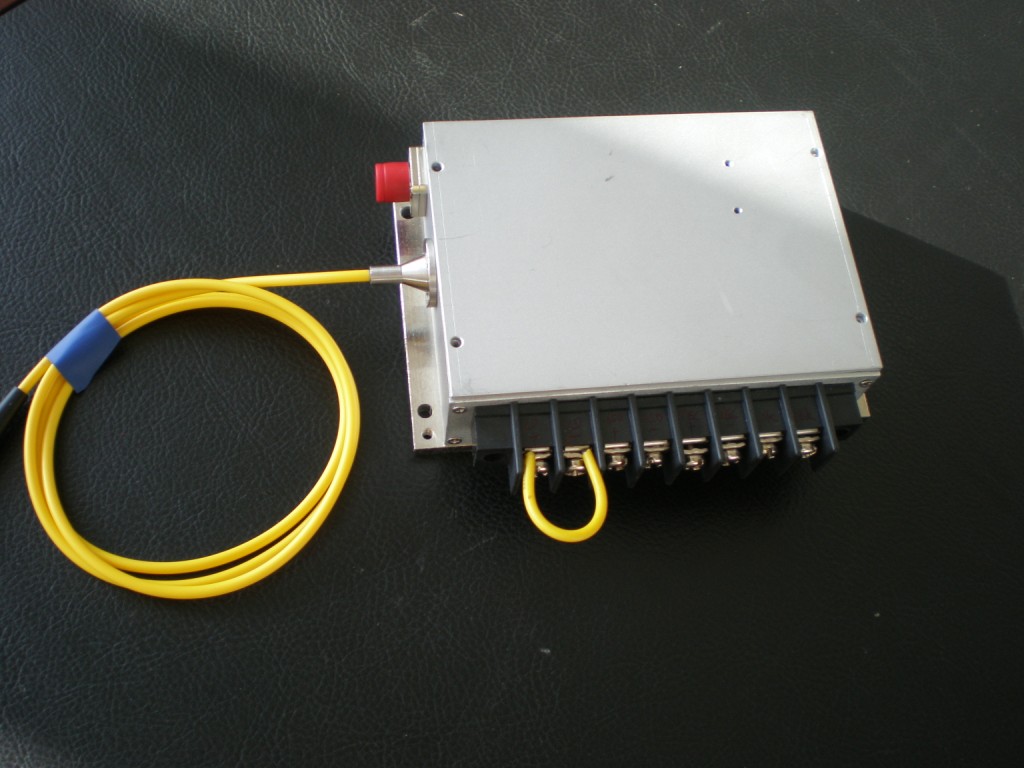

830nm 6W Fiber Coupled Laser Diode (LD) With HHL Package
Description
Specifications 830nm 6W Fiber Coupled Laser Diode (LD) With HHL Package WSLB-830-006-H Min. Type Max. Center Wavelength@25Ўж —- 830±,10nm —- Spectral Width (FWHM) —- 3nm —- Output Power —- 6W —- Temperature Coefficient of Wavelength —- 0.3nm / C —- Threshold Current (Typ.) —- 800mA —- Operating Current (Typ.) —- 3.5A —- Operating Voltage —- 6V —- Cooling TEC Cooling Fiber Core Diameter <,300um Fiber Numerical Aperture 0.22 Fiber Length 100cm Connector Type SMA905/ST/FC Aiming Beam (2mw@650nm) Optional Wavespectrum offer Customized 830nm Fiber Coupled LD. l Customized Output Power l Customized Fiber Core l Dual-Wavelength or Tri-Wavelength Module Optional(such as 8w@830nm+350mw@635nm) Contact us with info@wavespectrum-laser.com
