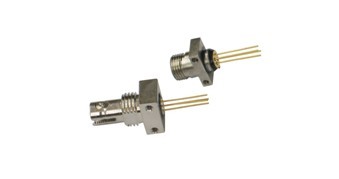

870nm~880nm Receptacle Laser Diode LD

Description

Specifications 870nm~880nm Receptacle Laser Diode LD 880nm SM Receptacle Laser Diode Module WSLR-880-002m-9-PD Min Type Max Center Wavelength@25Ўж 870nm 880nm 890nm Spectral Width (FWHM) —- —- —- Optical Fiber Output Power (After FiberЈ© —- 2mW —- Fiber Specification 9um Fiber Core Slope Efficiency 0.3mW/mA 0.5mW/mA —- Monitor Current 0.2mA —- 0.6mA PD Reverse Voltage —- 30V —- Ferrule Type FC Other Customized Ferrule SC, ST Threshold Current (Typ.) —- 10mA 15mA Operating Current (Typ.) —- 38mA 43mA Operating Voltage —- 2.2V 2.5V Package Style Receptacle
