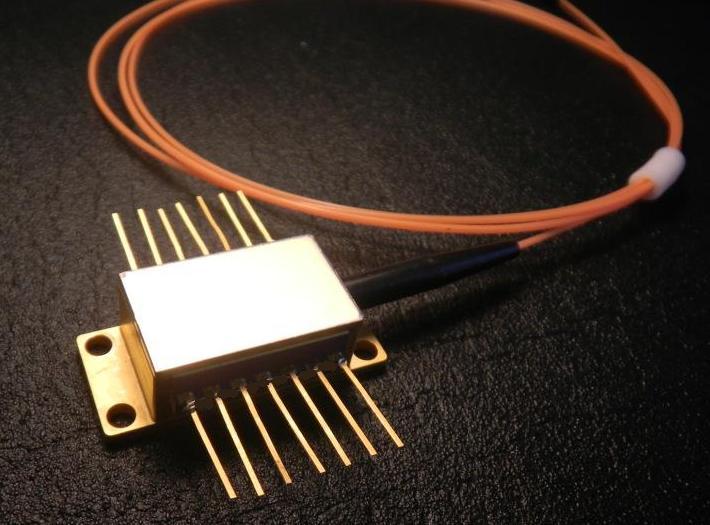

940nm 1W~1.5W Fiber Coupled Laser Diode (LD) with BTF Package
Description
| Specifications | 940nm 1W~1.5W Fiber Coupled Laser Diode (LD) with BTF Package WSLX-940-001-H-T | ||
Min | Type | Max | |
Center Wavelength@25Ðж | ±,3nm | 940 | ±,10nm |
Spectral Width (FWHM) | 3nm | ||
Output Power | 1W | 1.5W | —- |
Temperature /Wavelength | 0.3nm / C | ||
Threshold Current (Typ.) | 400mA | ||
Operating Current (Typ.) | 2.2A | ||
Operating Voltage | 2.0V | ||
Recommended Temperature | 25C | ||
TEC Max Current | 1.8A | ||
TEC Max Voltage | 2.5V | ||
Fiber Core | 105um (60um , 200um , 400um Optional) | ||
Fiber Length | 80cm | ||
Connector Type | SMA905/ST/FC | ||
Package Style | 14-PIN Butterfly Package | ||
