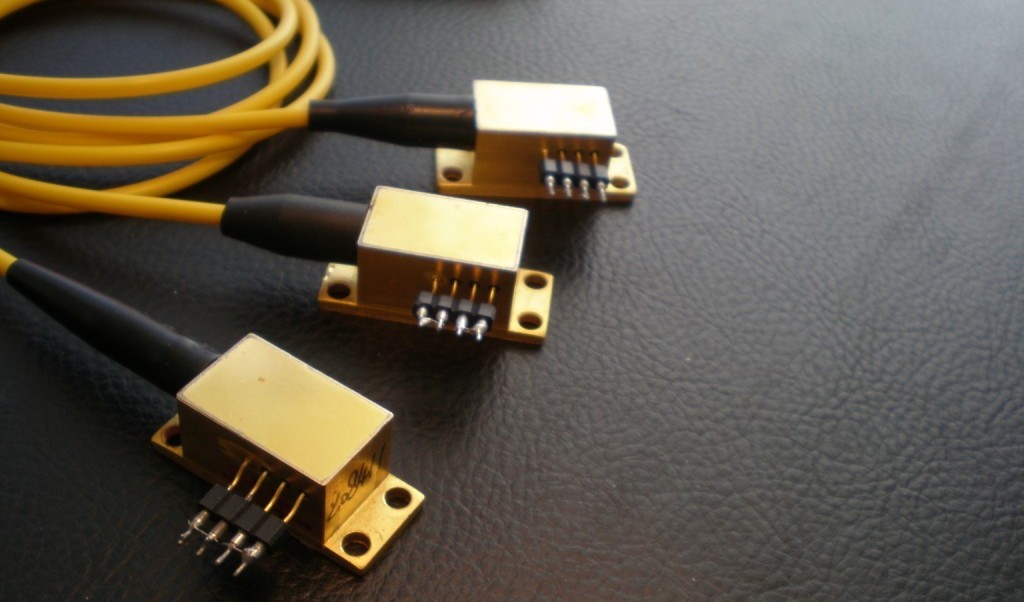

940nm 2W Fiber Coupled Laser Diode (LD)
Description
Specifications 940nm 2W Fiber Coupled Laser Diode (LD) WSLX-940-002-H Center Wavelength@25Ўж 940±,10nm Spectral Width (FWHM) <,3nm Output Power 2W Temperature /Wavelength 0.3nm / C Threshold Current (Typ.) 350mA Operating Current (Typ.) 3A Operating Voltage 2.0V Recommended Temperature 25C TEC Max. Current —- TEC Max. Voltage —- Fiber Core Diameter 105um (60um, 200um,400um Optional) Fiber Numerical Aperture 0.22 (0.12N.A. , 0.37N.A. Optional) Fiber Length 80cm Connector Type SMA905/ST/FC Package Style 2-pin, 4-pin
