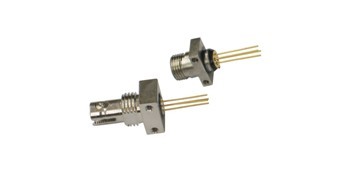

980nm 10mw SM Receptacle Laser Diode

Description

Specifications 980nm 10mw SM Receptacle Laser Diode 980nm Receptacle LD Module with SMF WSLR-980-010m-9-PD Min Type Max Center Wavelength@25Ўж 970nm 980nm 990nm Spectral Width (FWHM) —- 2.0nm 3.0nm Optical Fiber Output Power (After FiberЈ© —- 10mW —- Fiber Specification 9 um Fiber Slope Efficiency 0.8mW/mA 0.9mW/mA —- Monitor Current —- 0.1mA —- PD Reverse Voltage —- 30V —- Ferrule Type FC Other Customized Ferrule ST , SC Threshold Current (Typ.) —- 35mA 45mA Operating Current (Typ.) —- 85mA 100mA Operating Voltage —- 2.0V 2.5V Package Style Receptacle
