Testing condition

Description

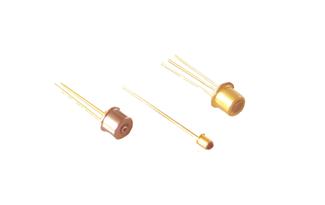

InGaAs PIN Photodetectors (PD) Absolute Maximum Ratings Parameter Symbol Value Unit Operating Temperature Top -40~+85 C Storage Temperature Tstg -40 ~ +125 C Reverse Voltage Vr 30 V Lead Soldering Temperature(10 sec.) Tis 260 C Detailed specification Specifications Testing condition WSPD-IGA-55-1 Unit Sensitive Area —- Dia 55 &mu,m Responsibility =1310nm &ge,0.85 A/W =1550nm &ge,0.90 Response Spectrum —– 850~1700 nm Dark Current (Typical) Vr=5V &le,0.4 nA Capacitance Vr=5V 0.3 PF Rise / Fall time Vr=5V 0.20 ns Bandwidth 3dB 2.5 GHz Saturation power(Typical) Vr=5V &ge,2 mW
