WSLB-1450-015-H
Description

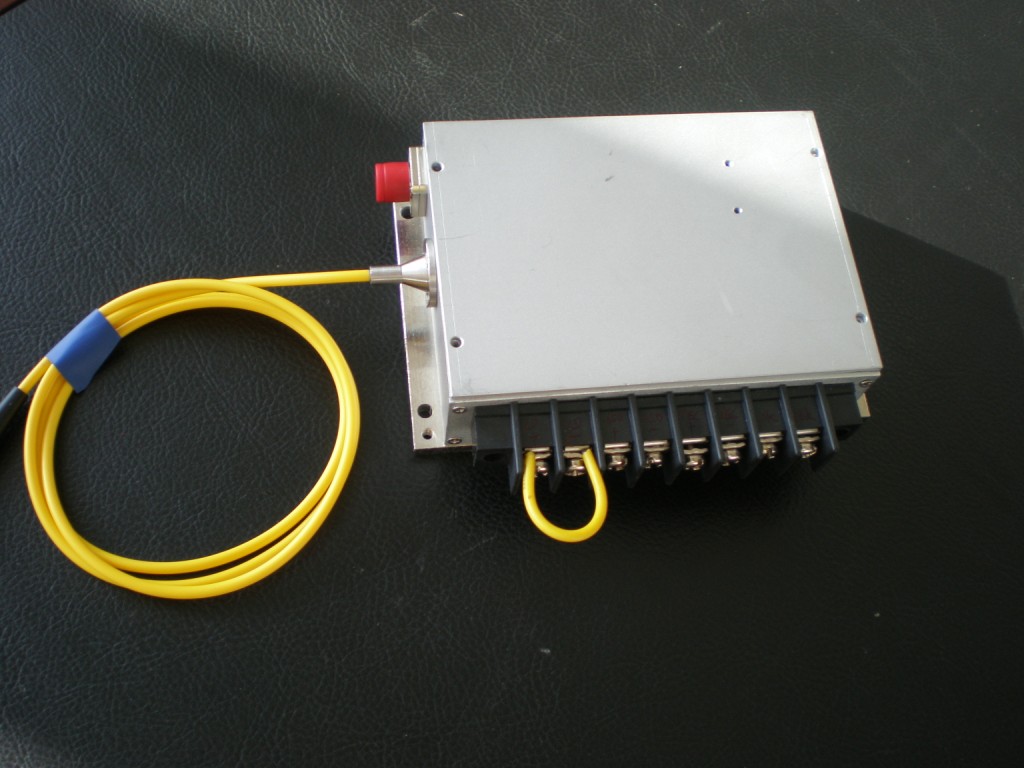

1450nm 15W Fiber Coupled LD (Laser Diode) Specifications WSLB-1450-015-H Min. Type Max. Center Wavelength@25Ўж —- 1450±,40nm —- Spectral Width (FWHM) —- 3nm —- Output Power —- 15W —- Temperature Coefficient of Wavelength —- 0.28nm / C —- Threshold Current (Typ.) —- 700mA 900mA Operating Current (Typ.) —- 2.8A 3A Operating Voltage —- 70V —- Cooling TEC Cooling Fiber Core Diameter 800um Fiber Numerical Aperture 0.22 Fiber Length 100cm Connector Type SMA905/ST/FC Aiming Beam (2mw@650nm) Optional Wavespectrum offer Customized 1450nm Fiber Coupled LD. l Customized Output Power l Customized Fiber Core l Dual-Wavelength or Tri-Wavelength Module Optional (such as 7w@1450nm+350mw@635nm) Contact us with info@wavespectrum-laser.com
