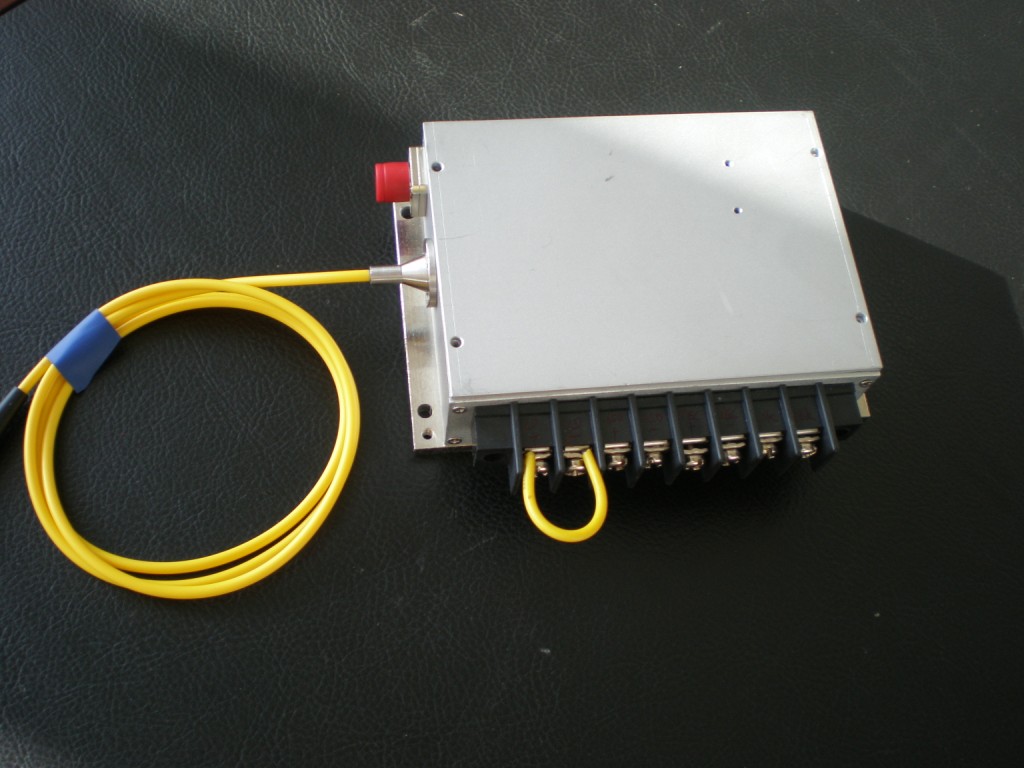

WSLB-792-030-H

Description

Specifications WSLB-792-030-H Min. Type Max. Center Wavelength@25Ўж —- 792nm+/-10nm —- Spectral Width (FWHM) —- 3nm —- Output Power —- 30W —- Temperature Coefficient of Wavelength —- 0.28nm / C —- Threshold Current (Typ.) —- 700mA —- Operating Current (Typ.) —- 3.4A —- Operating Voltage —- 28V 30V Cooling TEC Cooling Fiber Core Diameter 600um Fiber Numerical Aperture 0.22 Fiber Length 100cm Connector Type SMA905/ST/FC Aiming Beam (2mw@650nm) Optional Wavespectrum offer Customized 792nm Fiber Coupled LD. l Customized Output Power l Customized Fiber Core l Dual-Wavelength or Tri-Wavelength Module Optional (such as 30w@792nm+350mw@635nm) Contact us with info@wavespectrum-laser.com
