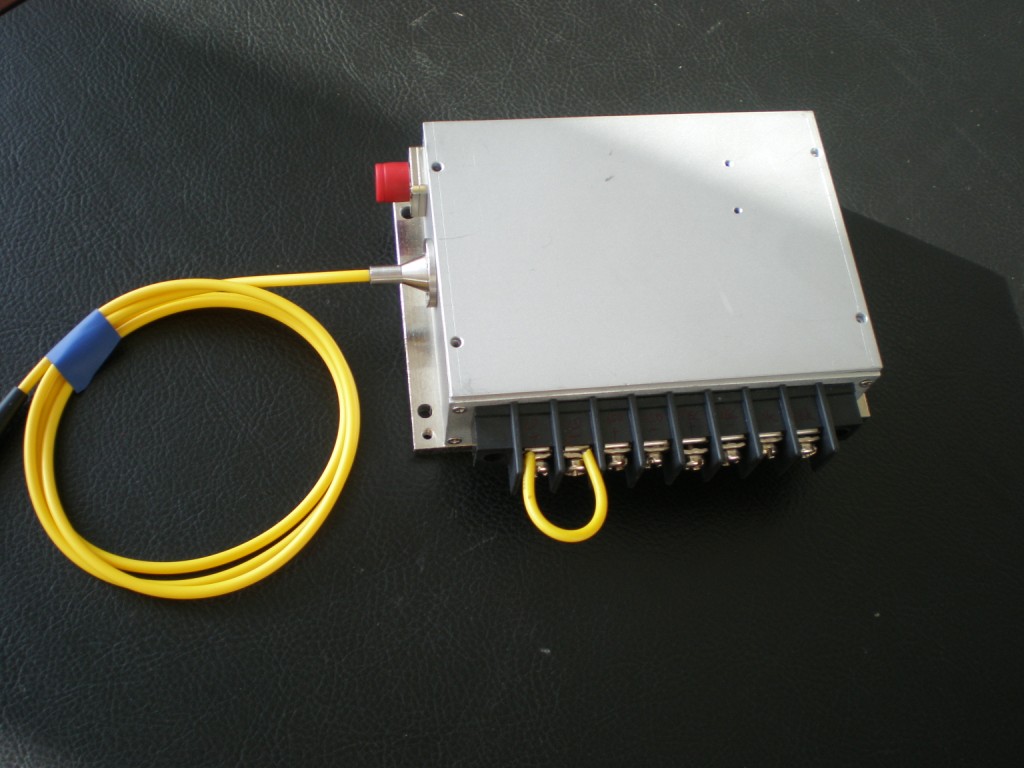

WSLB-808/012-980/012-H-A

Description

Specifications WSLB-808/012-980/012-H-A Wavelength-1 Wavelength-2 Center Wavelength 808nm 980nm Output Power (CW) 12W 12W Threshold Current (Typ.) 0.85A 0.65A Operating Current (Typ.) 5.2A 5.5A Operating Voltage 6.3V 6.9V Aiming Beam 2mw@650nm 635nm,405nm, 445nm as Aiming Beam Optional TEC Cooling Optional Thermistor (10K) Optional Photodiodes Optional Fiber Core Diameter &lt,400um Fiber Jacket Stainless Steel Armored Optional Fiber Length 100cm Connector Type FC/SMA905 Package P2 WAVESPECTRUM offer Customized Tri-Wavelength Fiber Coupled Laser Module: 1) The Power of 808nm : 800mW to 30W Optional 2) The Power of 980nm : 800mW to 30W Optional 3Ј©The Aiming Beam can be 635nm or 650nm 4Ј© Photodiodes Optional 5Ј© TEC Cooling Optional 6) Other Wavelength Optional Such as 830nm, 880nm, 915nm,940nm, 980nm, 1064nm, 1450nm, 1470nm, 1550nm, etc.) If you have any special Request, Please contact us with info@wavespectrum-laser.com
