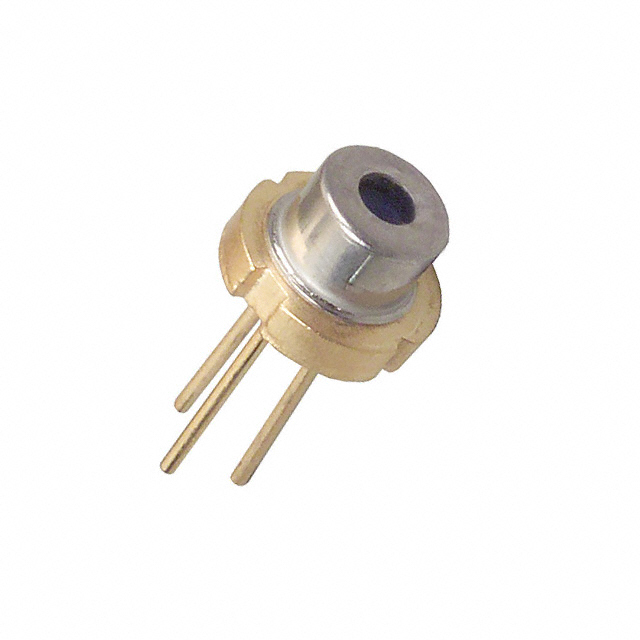

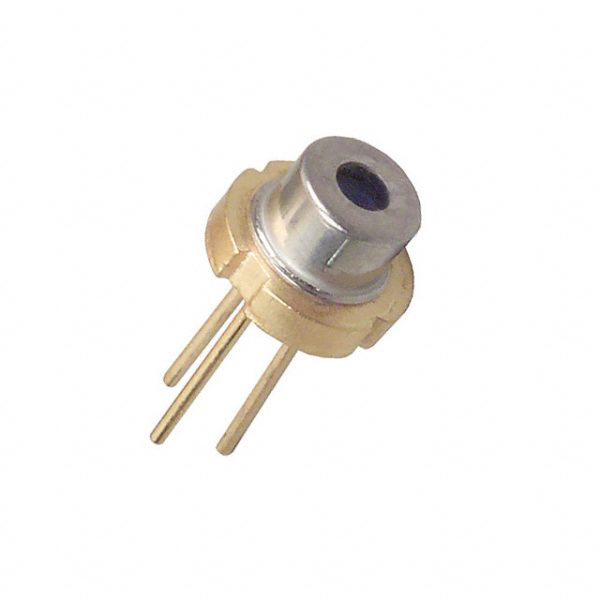

WSLD-685-050m-1

Description

Specifications WSLD-685-050m-1 Min Type Max Center Wavelength@25Ўж 680nm 685nm 690nm Recommend Operating Temperature 25Ўж Output Power —- 50mw —- Emitter —- Single —- Beam Divergence (FWHM) 12©Ш x 7// 13©Ш x 8// 22©Ш x 12// PD Forward Current —- —- —- Slope Efficiency —- 1.1mW/mA 1.2mW/mA Threshold Current (Typ.) 20mA 25mA 35mA Operating Current (Typ.) —- 70mA 80mA Operating Voltage —- 2.4V 2.7V Package Style TO18
