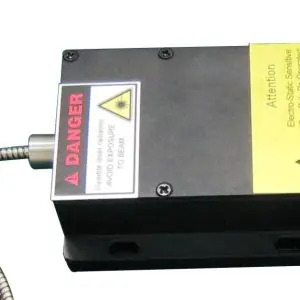

WSLP-375-040m-4

Description

375nm High Power SM Pigtail LD Specifications WSLP-375-040m-4 Min Type Max Center Wavelength@25Ўж 370nm 375nm 380nm Output Power —- 40mW —- Fiber Type UV Single Mode Fiber Fiber Core 3~4um Slope Efficiency 0.8mW/mA 1.1mW/mA 1.8mW/mA Monitor Current —- —- —- PD Reverse Voltage —- —- —- Fiber Connector FC/ST/SMA905 Fiber Length —- 80cm 100cm Threshold Current (Typ.) —- 200mA 260mA Operating Current (Typ.) —- 390mA 480mA Operating Voltage —- 4.4V 5.0V Package Style Coaxial
