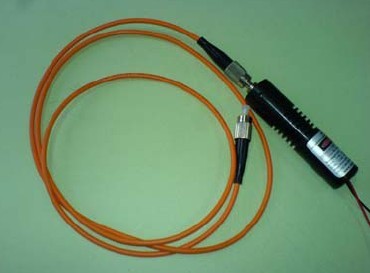

WSLP-445-500m-M

Description

Specifications WSLP-445-500m-M Min Type Max Center Wavelength@25Ўж 440nm —- 455nm Spectral Width (FWHM) —- 2.0nm —- Output Power 400mW —- 500mW Fiber Core 40um Ўў50umЎў60umЎў 105um optional Slope Efficiency 0.8mW/mA —- 1.8mW/mA Monitor Current —- —- —- PD Reverse Voltage —- —- —- Fiber Connector FC/ST/SMA905 Fiber Length —- 80cm 100cm Threshold Current (Typ.) 150mA —- 300mA Operating Current (Typ.) —- 1A 1.2A Operating Voltage 4V —- 6V Package Style Coaxial
