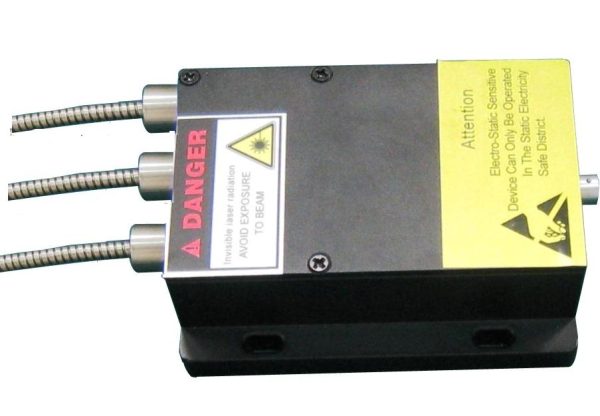

WSLS-650-3C-030m-4

Description

Specifications WSLS-650-3C-030m-4 Min Type Max Center Wavelength@25Ўж 640nm 650nm 660nm Output Power adjustment range 30mW Fiber Core 4um SM fiber Output Channels Number 3 channels Operating Temperature 0~50 C Long Term Power Stability —- 2% —- Temperature Stability —- 0.01C —- Noise (p-p) (20Hz to 2MHz) —- 2% —- RMS Noise (20Hz to 2MHz) —- 0.2% —- Fiber Connector FC/ST/SMA905 Fiber Length —- 80cm 100cm DC Power Supply 5V&plusmn,0.1V, Ripple&lt,25mVp-p, &lt, 2A TTL modulation 10MHz Collimation Optional Cooling TEC Cooling Protection (1)Reverse polarity and transient/ESD, (2)over temperature and LED pre-failure indicator, (3)interlock Wavespectrum Laser, Inc. offer—– Custom-built Fiber Coupled Laser System! l Custom-built Fiber: SM/MM/PM Fiber l Custom-built WavelengthЈє375nm~1600nm l Custom-built Output Power l Custom-built Channel:1/2/3/&hellip,&hellip, l Modulation Optional l Collimation Optional
