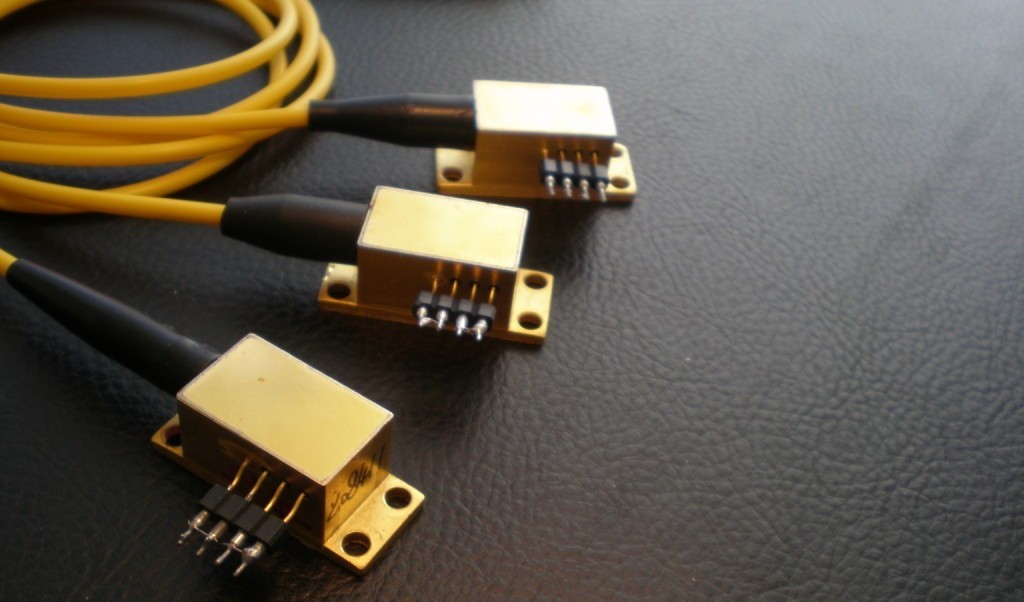

WSLX-808-005-H-A

Description

Specifications WSLX-808-005-H-A Center Wavelength@25Ўж &plusmn,3nm 808nm &plusmn,10nm Spectral Width (FWHM) 1nm —- 3nm Output Power —- 5W —- Temperature Coefficient of Wavelength 0.3nm / C Threshold Current (Typ.) 600mA Operating Current (Typ.) 6.8A Operating Voltage 2.1V Recommended Case Temperature 25C Red Aiming Beam 1mw@650nm TEC Cooler Optional Photodiodes Optional Fiber Core 200um (105um or 400um Optional) Fiber Length 80cm Fiber Connector SMA905/ST/FC Package Style 4-pin, 9-pin WAVESPECTRUM offer Customized 808nm Dual-Wavelength Fiber Coupled Laser Module: 1Ј© The Power of 808nm from 800mW to 30W Optional 2Ј© The Aiming Beam can be 635nm or 650nm 3Ј© Photodiodes Optional 4Ј© TEC Cooling Optional 5) Other Wavelength Optional (Such as 830nm, 880nm, 915nm, 940nm, 980nm, 1064nm, 1450nm, 1470nm, 1550nm, etc.) If you have any special Request, Please contact us with info@wavespectrum-laser.com
