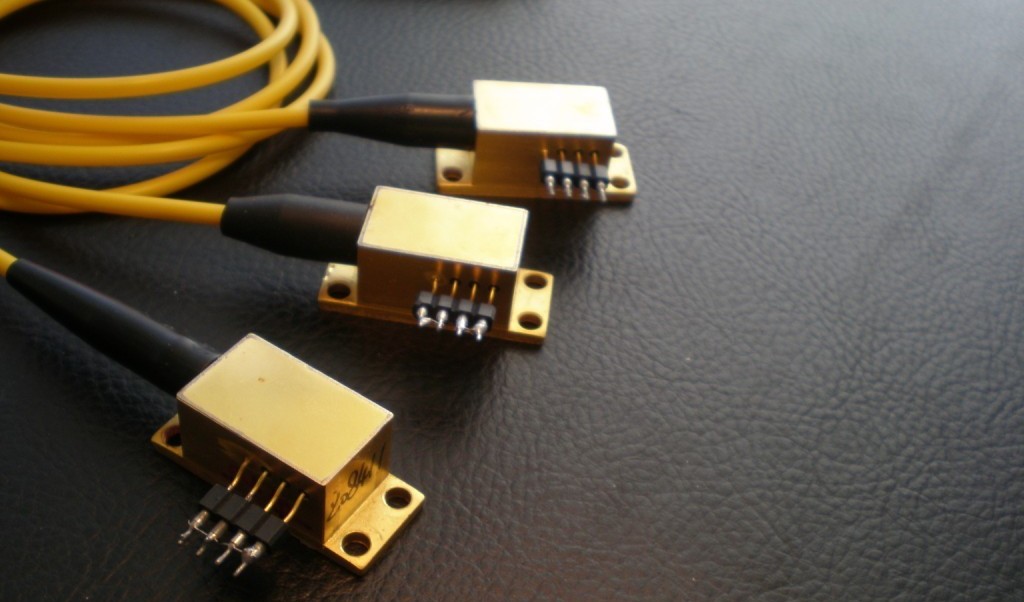

WSLX-808-008-H
Description
808nm~810nm 7W~8W Fiber Coupled Laser Diode (LD) Specifications WSLX-808-008-H Center Wavelength@25Ўж ±,3nm 808nm ±,10nm Spectral Width (FWHM) 1nm —- 3nm Output Power —- 8 W —- Temperature /Wavelength 0.28nm / C Threshold Current 1A Operating Current 11A Operating Voltage 2.0V Slope Efficiency 0.9W/A TEC Max. Current —- TEC Max. Voltage —- Fiber Core Diameter 200um 400um N.A. 0.22 0.37 Fiber Length 100cm Connector Type SMA905/ST/FC Package Style 2-pin or 4-pin
