WSLX-808-008-H-T
Description

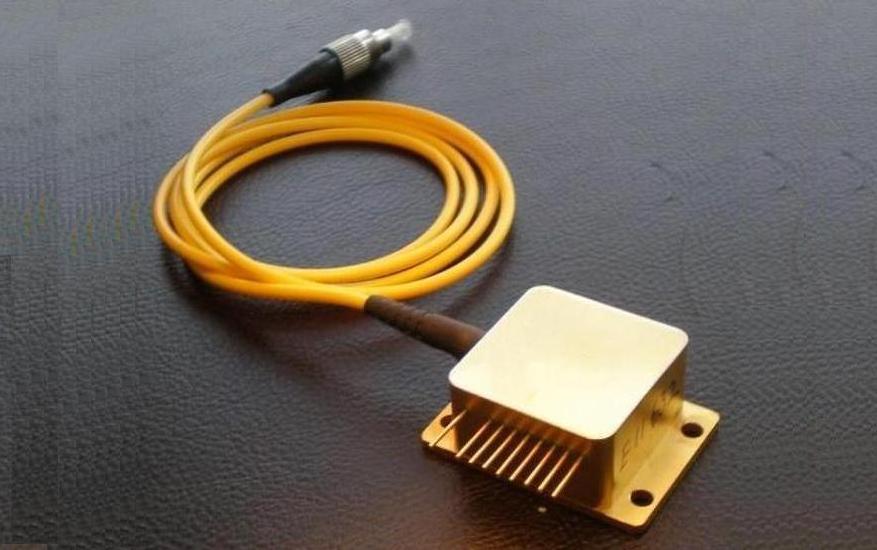

808nm 7w~8W Fiber Coupled Laser Diode with HHL Package (TEC Cooling) Specifications WSLX-808-008-H-T Min Type Max Center Wavelength@25Ўж ±,3nm 808nm ±,10nm Spectral Width (FWHM) 3nm Output Power —- 8W —- Temperature/Wavelength 0.3nm / C Threshold Current (Typ.) 1A Operating Current (Typ.) 11A Operating Voltage 2.0V Recommended Temperature 25C TEC Max. Current 6A TEC Max. Voltage 9.8V Fiber Core Diameter 200um or 400um Optional N.A. 0.22 (0.37 N.A. Optional) Package 9-PIN HHL Fiber Length 80cm Connector Type SMA905/ST/FC
