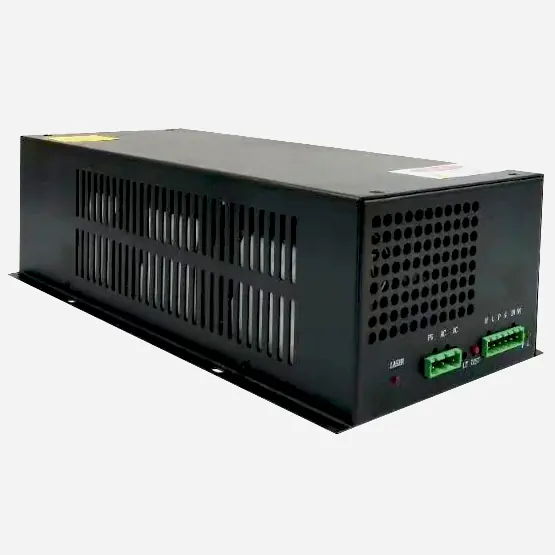

150W power supply


SKU: 150W power supply Categories: , ,


CO2 laser power supply Standard – a range of standard universal power supplies for most laser cutting and engraving machines. The sources meet all the requirements in the use of CO2 laser tubes, produced in large quantities by various manufacturers.
main characteristics:
– good compatibility,
– simple TTL level control: it has TTL signal indication, water indication and laser output signal.
– the block has protection against a chain break. It has a button to manually check the output laser.
– fast response speed, high efficiency.
– built-in digital display on the unit body (option)

ModelStandard 150W
Laser Tube Power150W
Input voltageAC 220V or AC 110V
AC supply frequency47-440 Hz
Maximum output voltageDC 34 kV
Maximum output currentDC 38 mA
Block dimensions350*161*91mm
Weight3.6 kg
Full Load Efficiency0.91
Overcurrent protection130% of maximum current
Open circuit protectionmomentary shutdown (when there is a good ground)
Coolingforced, air (built-in fan)
High control voltage range≥3V
Low level control voltage range ≤0.8V
Operating temperature-30~ +65℃
Relative Humidity20 ~85% non-condensing
Voltage resistanceAC1500V 1min. ≤10mA (cathode output connected to case)
Insulation resistance≥50MΩ at DC500V
Leakage current≤1mA at AC220V ≤0.5mA at AC110V
Vibration resistance2h 3D direction with amplitude 0.5mm frequency 10~55Hz
Mean Time Between Failures (MTBF)≥30000hrs
High Temperature Test Time12 hours 60ºC at full load
Testing7s on/off 500 times
