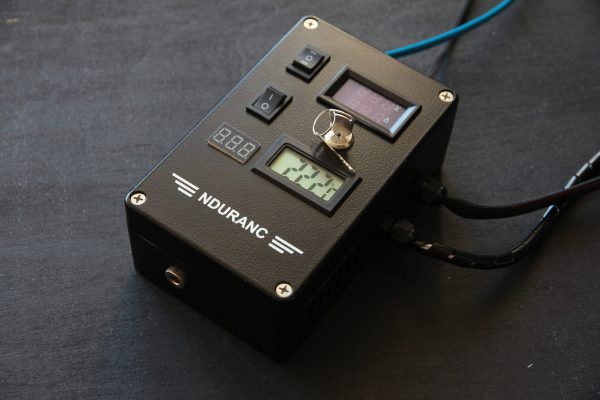

An Endurance Laser box ver 2.0



An Endurance Laser box ver 2.0


Key features of an Endurance MO2 PCB:
1. Analog input 0-10 PWM output 0-100%.
2. TTL input up to 24V PWM output.
3. Focusing mode laser PWM 0.1%.
4. Adjustable laser voltage threshold of 4.5 to 5.5V
5. Protection against reverse polarity reversal of analog, comparator and TTL inputs.
6. The delay in applying the voltage to the laser when the unit is turned on 1.5 sec.
7. Ability to install both large and small box without modifications of the printed circuit board.
8. Ability to run an impulse mode with a wide variety of frequency and duration width.




CN1 – Power Board +12V
CN2 – Analog Input/Inverted input
CN3 – Mode select switch SW1
CN4 – PWM Input
CN5 – Fan
CN6 – Input Voltage Voltmeter
CN7 – DC-DC output voltage voltmeter

XT2 – Laser
XT3 – Laser current measurement. Ammeter





An Endurance 8.5 watt PLUS PRO laser with a laser box ver 2.0

Technical Data for an Endurance Laser box ver. 2.0

Supply voltage12 VDC+-10%
Minimum Current Power Supply (For laser diodes up to 10W)         5 A+-10%
Rated Output Current (For laser diodes up to 10W)         5 А
Max Output Current (Power supply current must be at least 10A)8 А
Laser diode voltage max5.5V
Laser diode voltage min2V
Laser diode current 1A – 6A
Laser diode current max8A*
Max. PWM  Frequency50 KHz
Min. PWM Frequency90 Hz
(You need to know if you connect to a 3D printer controller)
Maximum PWM duty cycle99,90%
(PWM frequency over 90Hz)
PWM Input Voltage (Left, Blue wire)3V – 12V
(Left, Blue wire)
PWM Input Voltage (Right, black wire)3V – 24V
Rise Time300 nS
(In relation to the input pulse of the PWM)
Analog Input Voltage0V – 10V
PWM Duty Cycle Based on Analog Input Voltage0% – 99,9%
PWM frequency when working with analog input500 HZ
Laser focus modePWM Duty 0,1%
Protection of the output voltage of the laser diode min4.5V
Protection of the output voltage of the laser diode max5.5V
Delay range before the start the laser:1.5 sec

Additional information

Weight0680.388555 kg
