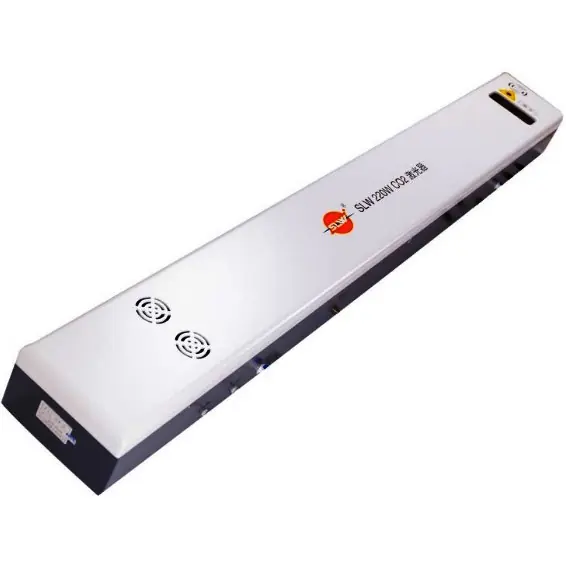

Laser tube /combined CO2 laser transmitter/ TS220 200W
The emitter is supplied in a special transport package, which can be supplemented with power supplies in the specified quantity and a recommended cooler.
Additional information
| Brand |
|---|
Description
The TS series composite laser emitters are designed for fast and efficient cutting of various materials on laser machines.
High power from 220 to 620 W allows the emitters to be used for cutting thick plywood and metals. Practical, easy-to-mount housing with one-sided connection. Lenses and mirrors are air-cooled, which allows you to keep a stable beam quality during long-term operation.
TS220 is designed for fast cutting of thin non-metal materials and thin metal.
| Model | TS220 |
| Emitter housing dimensions, mm | 1600*245*148 mm |
| Rated power, W | 200 |
| Maximum power, Tue | 280 |
| Running time, h | > 12000 |
| Emitter weight, kg | 15 |
| Type of cooler / chiller, capacity not less than mod. | CW-5200 |
| Recommended ignition unit model / quantity | PSH / 2 units |
Options
The emitter is supplied in a special transport package, which can be supplemented with power supplies in the specified quantity and a recommended cooler.
