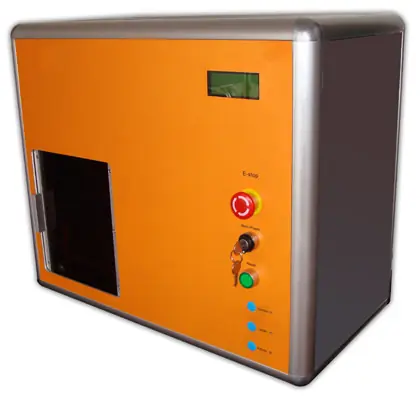

TSTDP-801B 3D laser engraver

• machine – 1 pc.
• computer – 1 pc.
• LaserControl software – 1 pc.
• LaserImage software – 1 pc.
• Manual for LaserControl software – 1 pc.
• Manual for LaserImage software – 1 pc.
• Suitcase for machine TSTDP-801B – 1 pc.
• Operating manual – 1 pc.
• Set of accessories – 1 pc.

Request a quote
SKU: TSTDP-801B 3D laser engraver Categories: , ,

Description

The TSTDP-801B 3D laser engraver is used to laser engrave 3D images inside crystal, glass and other transparent materials without damaging the surface of the material. Using powerful professional software, you can get high quality 2D and 3D images inside any transparent material. Engraving is formed by creating a directed laser beam inside a transparent material of microexplosions, a huge number of which create traces of various shapes and volumes. Using a 3D camera, you can easily take 3D photos in a crystal.

• High laser frequency and galvanometer system guarantees high speed laser engraving.
• Does not require consumables for laser diodes during the entire service life.
• The use of imported components can achieve high stability and quality of engraving .
• Laser power adjustment.
• Professional software.

Laser type

Nd:YAG

Laser Wavelength

532nm

Laser frequency

≤3kHz

Pulse Width

≤6ns

Positioning system

Electro-optic

Engraving speed

≤3000dpi

Crystal size, (X,Y,Z)

130x150x100mm

Engraving area, (X,Y,Z)

100x120x100mm

Number of laser heads

1

Resolution (point to per inch)

600

Laser beam diameter

0.04-0.08mm

Cooling system

air

Continuous operation time

>20h

Laser Diode Life

>12000h

Computer (included)

CPU: Dual-Core 3.0G
4GB RAM
500GB Hard disk

Software

LaserControl – control software
LaserImage – software for converting graphics into engraving format

Supported formats

Support for images in BMP, DXF etc, conversion capability to acceptable file format
Photoshop, AutoCAD, 3DMAX etc

Positioning accuracy

0.005mm

Application temperature

10-35°C

Humidity

≤70%

Noise level

50dB

Power consumption

≤800W

Power

AC 220V(±10%) 50Hz

Machine weight

50kg

Package weight

100kg

Machine dimensions, (LxWxH)

540x320x545mm

Packed machine dimensions (LxWxH)

7 60x560x650mm

Engraving time

15x20x30mm, 30000 dots: ~ 15 sec.
50x50x80mm, 300000 dots: ~ 2 min.
100x150x20mm, 3000000 dots: ~ 20 min.

Options

• machine – 1 pc.
• computer – 1 pc.
• LaserControl software – 1 pc.
• LaserImage software – 1 pc.
• Manual for LaserControl software – 1 pc.
• Manual for LaserImage software – 1 pc.
• Suitcase for machine TSTDP-801B – 1 pc.
• Operating manual – 1 pc.
• Set of accessories – 1 pc.
