Endurance presents a 10 watt PRO blue laser module for laser cutting and laser engraving.
- Professional electronics (laser box ver 2.0 with Mo2 PCB).
- Compatible with all 3D printer / CNC frames and XY plotters.
- Easy to mount. Easy to operate. Easy to cut and engrave.
A laser photoengraving Key features of 10 watt “Pro” version
- Advanced electronics in a laser box ver 2.0
- Professional & industrial design.
- Reduced weight & better thermal conductivity of a heatsink.
Create nice photo engraving imagesPlywood photoengraving
Anodized / painted aluminum photoengraving
Wood photoengraving (small puppy)
Easy to prepare the image using a Lightburn software
Do laser photo engraving as a professional!
Ultimate speed up to 5000 mm/minute.THE HIGHEST SPEED FOR PHOTO LASER ENGRAVING ON THE MARKET!
Seal/stamp laser production. Expand your business opportunities with the 10 watt DIODE laser module.
PET/PETG plastics laser cutting – some nuances.
Fabric laser cutting with 10 watt diode blue laser module.
Engraves on metallic surfaces including steel, stainless steel, anodized aluminum, copper, brass.Cuts 3-4 mm (1/8 – 3/16”) of wood/plywood. 5-8 mm (1/4”) of a dark (color) acrylic.Cuts leather, felt, fabric, sailcloth.Wood / plywood laser cutting test – all you need to know
A beautiful design with a combination of high laser power.
An optimal solution for cutting and engraving.
Endurance lasers’ professional design
10 watt has a perfectly polished aluminum shape.
Convenient mounting holes
You may hook the laser anyhow you want.
All mounting holes allow you to make any custom mount or holder.
High-quality aluminum allows for better thermal conductivity
High heat distribution allows keeping the diode in a good temperature range.
Allows doing accurate laser cutting and laser engraving on a different range from a laser to a surface. G2 laser lens allows having the smallest laser beam spot of 63*130um (microns).
Bigger focusing ring & pre-set focus
A bigger focusing ring allows adjusting laser focus in an easy manner.
Pre-set focus allows focussing the laser on the range: 70-75 mm from the aluminum housing to a surface.

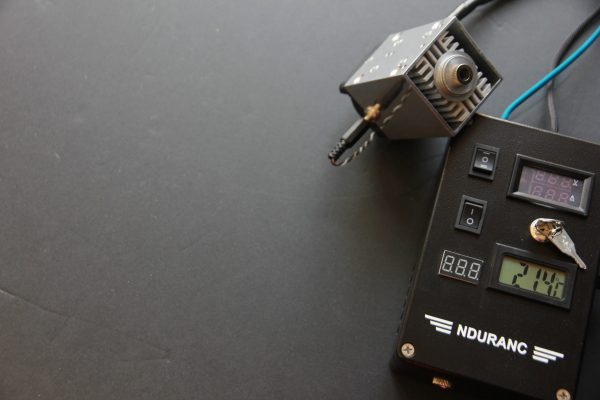

Laser box ver. 2.0 – all you need to know about wiring and switches.
An advanced metal laser box with a Mo2 PCB inside equipped with all necessary tools.
Measuring an incoming voltage, diode voltage, and current, protective lock key.
No fake and low-quality Chinese laser diodes that degrade very quickly
We test every single laser module before shipment. Usually, the laser is working for 48-72 hours before the shipment.
Compatible mounts allow hooking the laser to any 3D printer / CNC machine or XY plotter. That allows reducing installation time to 5-10 minutes.
You get all you need to get started.
We take care of your time and we already thought about all you need to get started so you get all in the box.
Ultimate tech support & 30 days of money back option.
If you did not like our product simply send if back and we will issue a full refund.
Get all you need to get started in the package:
· Laser module 10 watt PRO 445 nm
· Laser box ver. 2.0
· A pair of protective laser goggles
· Regular 3 element lens
· Laser connectors
· Bigger focusing rings x3PCS
· High-quality power supply: 12V 6A AC DC (PSU) Add useful accessories to get the best laser cutting and laser engraving resultLens and optics >>> https://www.endurance-lasers.com/collections/lens-and-optics Laser mounts >>> https://www.endurance-lasers.com/collections/all-mounts Air nozzle >>> https://www.endurance-lasers.com/collections/air-nozzle
Technical Data for an Endurance Laser box ver. 2.0
|Supply voltage||12 VDC+-10%|
|Minimum Current Power Supply (For laser diodes up to 10W)||5 A+-10%|
|Rated Output Current (For laser diodes up to 10W)||5 А|
|Max Output Current (Power supply current must be at least 10A)||8 А|
|Laser diode voltage max||5.5V|
|Laser diode voltage min||2V|
|Laser diode current||1A – 6A|
|Laser diode current max||8A*|
|Max. PWM Frequency||50 KHz|
|Min. PWM Frequency||90 Hz|
|(You need to know if you connect to a 3D printer controller)|
|Maximum PWM duty cycle||99,90%|
|(PWM frequency over 90Hz)|
|PWM Input Voltage (Left, Blue wire)||3V – 12V|
|PWM Input Voltage (Right, black wire)||3V – 24V|
|Rise Time||300 nS|
|(In relation to the input pulse of the PWM)|
|Analog Input Voltage||0V – 10V|
|PWM Duty Cycle Based on Analog Input Voltage||0% – 99,9%|
|PWM frequency when working with analog input||500 HZ|
|Laser focus mode||PWM Duty 0,1%|
|Protection of the output voltage of the laser diode min||4.5V|
|Protection of the output voltage of the laser diode max||5.5V|
|Delay range before starting the laser:||0-1.5 sec (adjustable)|
